SKU: UCFA205-14

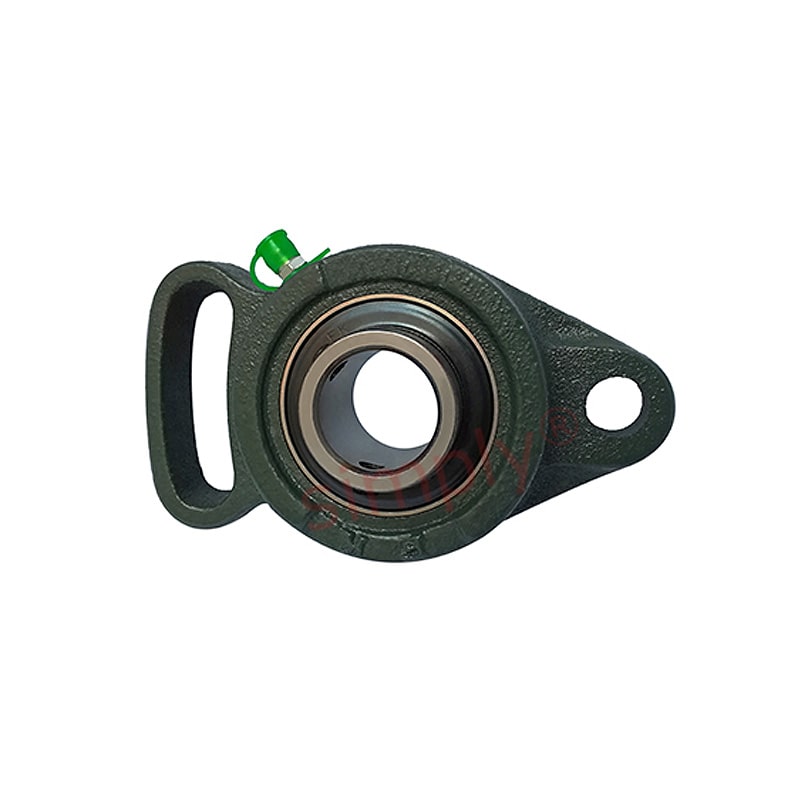

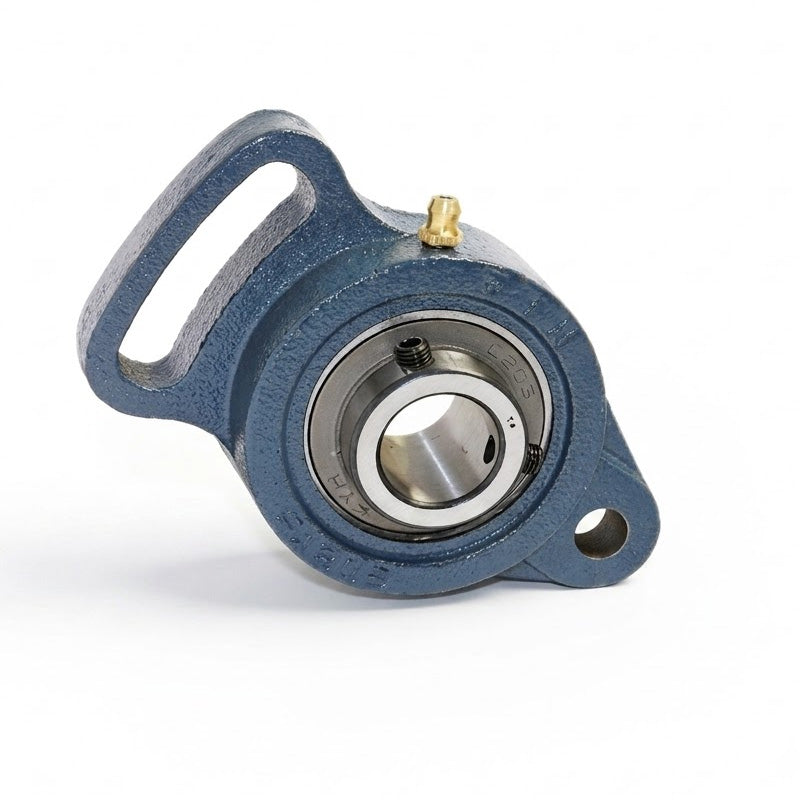

UCFA205-14 Imperial Cast Iron Adjustable Flange Unit with 7/8 inch Insert
UCFA205-14 Imperial Cast Iron Adjustable Flange Unit with 7/8 inch Insert
Regular price
$18.47
ex VAT
Regular price
Sale price
$18.47
ex VAT
In stock
Price Break
3+
$8.72
4+
$8.23
9+
$8.13
19+
$8.04
49+
$7.94
99+
$7.84
499+
$7.35
999+
$7.25
1999+
$7.15
2999+
$7.06
4999+
$6.86
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 98.03mm = 3.859 (3-55/64) inch
Technical
Technical
| d | 7/8 inch |
|---|---|
| a | 4-7/8 inch |
| e | 3-55/64 inch |
| i | 5/8 inch |
| g | 35/64 inch |
| l | 1-1/16 inch |
| s | 33/64 inch |
| b | 2-3/4 inch |
| z | 1-13/32 inch |
| f | 2-1/64 inch |
| c | 2-9/16 inch |
| B | 1.3425 inch |
| n | 0.563 inch |
| Bolt size | 3/8 inch |
| Bearing no | UC205-14 |
| Housing no | FA205 |
| Weight | 0.67 kg |
