SKU: UCF.203-11

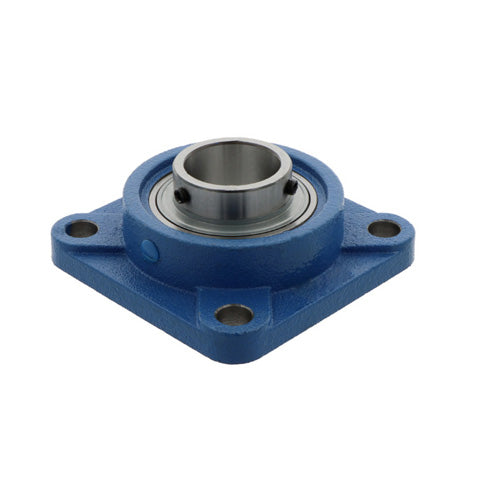

UCF203-11 Imperial Four Bolt Square Cast Iron Flange Housing with 11/16 inch Bore Insert
UCF203-11 Imperial Four Bolt Square Cast Iron Flange Housing with 11/16 inch Bore Insert
Regular price
$21.80
ex VAT
Regular price
Sale price
$21.80
ex VAT
In stock
Price Break
3+
$10.29
4+
$9.72
9+
$9.60
19+
$9.48
49+
$9.37
99+
$9.25
499+
$8.68
999+
$8.56
1999+
$8.44
2999+
$8.33
4999+
$8.10
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Style:
- UCF
- Bolt Hole Centres:
- 64mm
Technical
Technical
| d | 11/16 inch |
|---|---|
| a | 86mm |
| e | 64mm |
| i | 15mm |
| g | 12mm |
| L | 25.6mm |
| S | 12mm |
| Z | 33.3mm |
| Bi | 31mm |
| n | 12.7mm |
| Bolt Size | M10 |
| Weight | 0.63 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
