SKU: UCC326-SNR

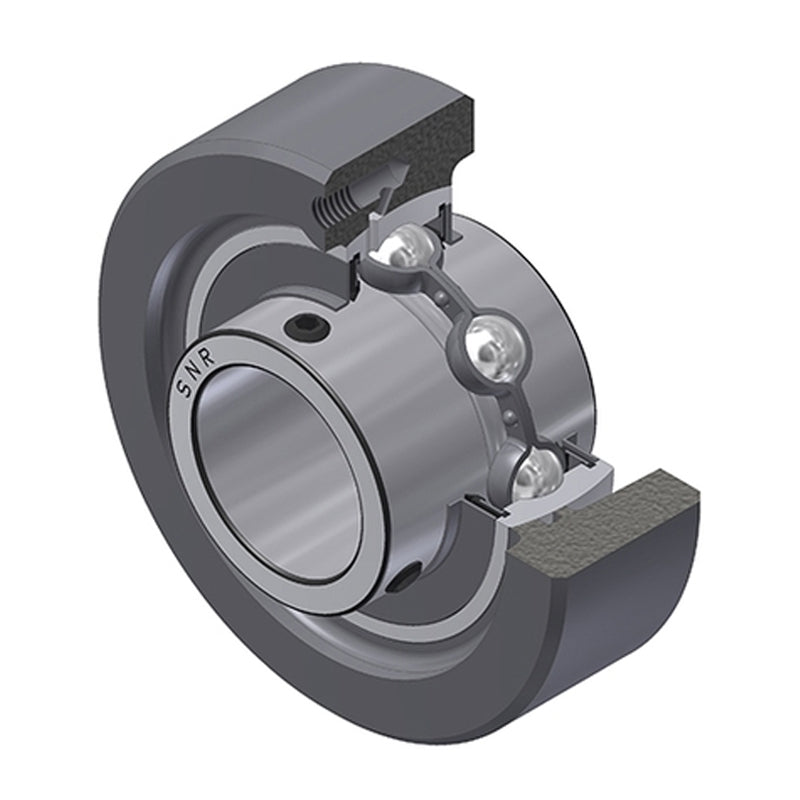

SNR UCC326 Metric Cast Iron Cartridge Unit with 130mm Bore Insert 100mm Outside Dia - Allow 2-3 Days
SNR UCC326 Metric Cast Iron Cartridge Unit with 130mm Bore Insert 100mm Outside Dia - Allow 2-3 Days
Regular price
$2,452.89
ex VAT
Regular price
Sale price
$2,452.89
ex VAT
In stock
Price Break
2+
$2,330.25
5+
$2,207.60
10+
$2,084.96
15+
$1,962.31
20+
$1,913.25
30+
$1,864.20
50+
$1,618.91
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 130mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 130mm |
| A | 100mm |
| A3 | 3.5mm |
| B | 135mm |
| H | 340mm |
| S | 54mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 252 kN |
| Static load C0 | 242 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 43.9 kg |
