SKU: UCC209-SNR

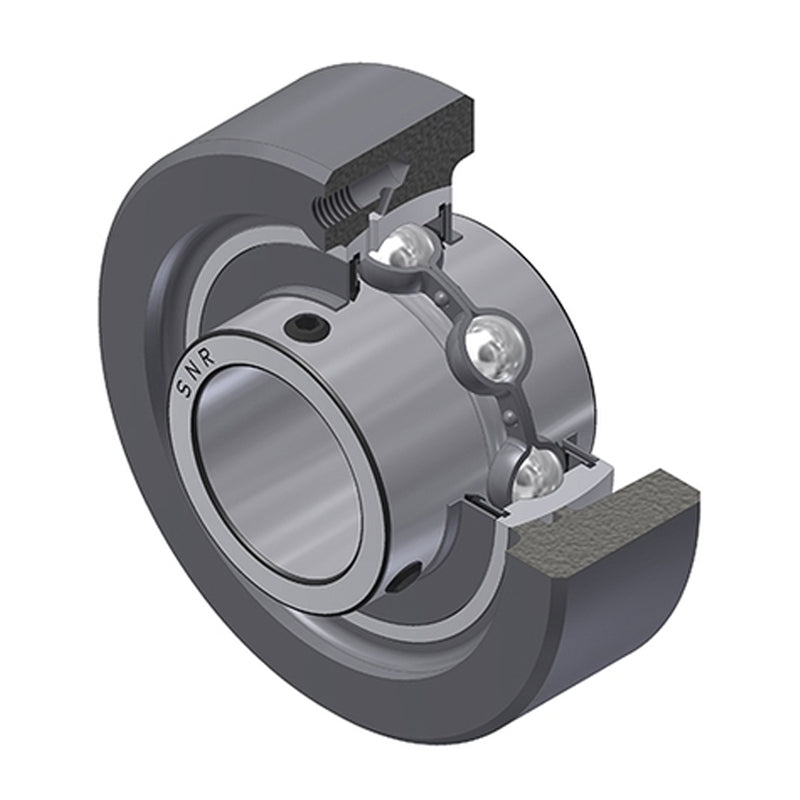

SNR UCC209 Metric Cast Iron Cartridge Unit with 45mm Bore Insert 31mm Outside Dia - Allow 2-3 Days
SNR UCC209 Metric Cast Iron Cartridge Unit with 45mm Bore Insert 31mm Outside Dia - Allow 2-3 Days
Regular price
$82.75
ex VAT
Regular price
Sale price
$82.75
ex VAT
In stock
Price Break
10+
$73.65
19+
$69.51
29+
$68.68
39+
$67.86
49+
$67.03
74+
$66.20
99+
$62.06
199+
$61.24
249+
$60.41
499+
$59.58
999+
$57.93
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 31mm |
| A3 | 2mm |
| B | 49.2mm |
| H | 110mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.48 kg |
