SKU: UCC205-16

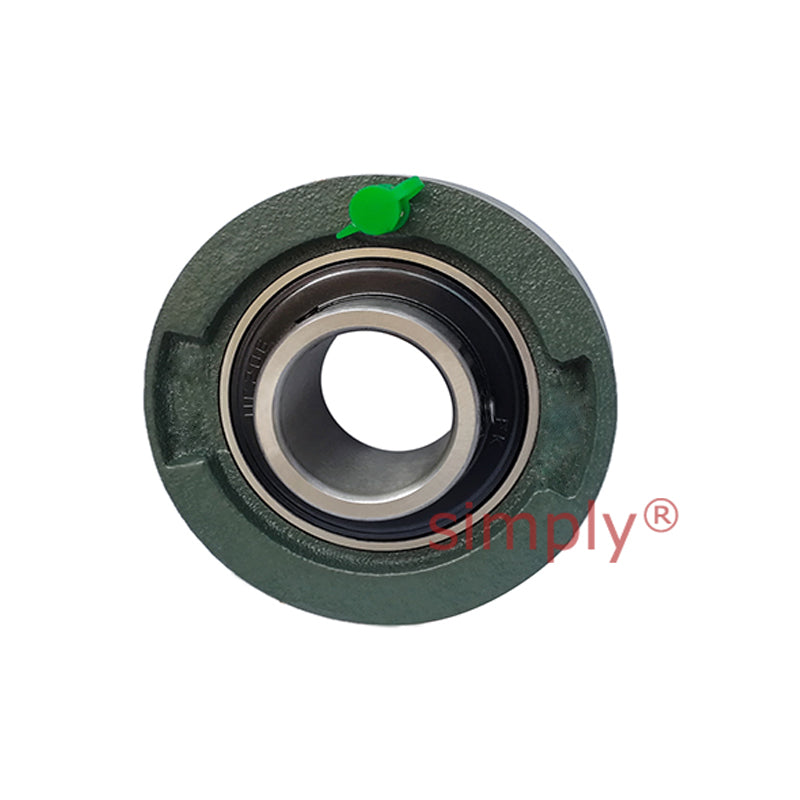

UCC205-16 Imperial Cast Iron Normal Duty Cartridge Unit with 1 inch Bore Insert 3.1496 inch Outside Dia
UCC205-16 Imperial Cast Iron Normal Duty Cartridge Unit with 1 inch Bore Insert 3.1496 inch Outside Dia
Regular price
$34.19
ex VAT
Regular price
Sale price
$34.19
ex VAT
In stock
Price Break
10+
$30.43
19+
$28.72
29+
$28.38
39+
$28.04
49+
$27.69
74+
$27.35
99+
$25.64
199+
$25.30
249+
$24.96
499+
$24.62
999+
$23.93
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 80mm = 3.1496 inch
- Style:
- UCC
Technical
Technical
| Bore d | 1 inch |
|---|---|
| Outer Dia a | 3.1496 inch |
| g | 55/67 inch |
| r | 0.079 inch |
| B | 1.3425 inch |
| n | 0.563 inch |
| Bearing No | UC205-16 |
| Housing No | C205 |
