SKU: UC.218

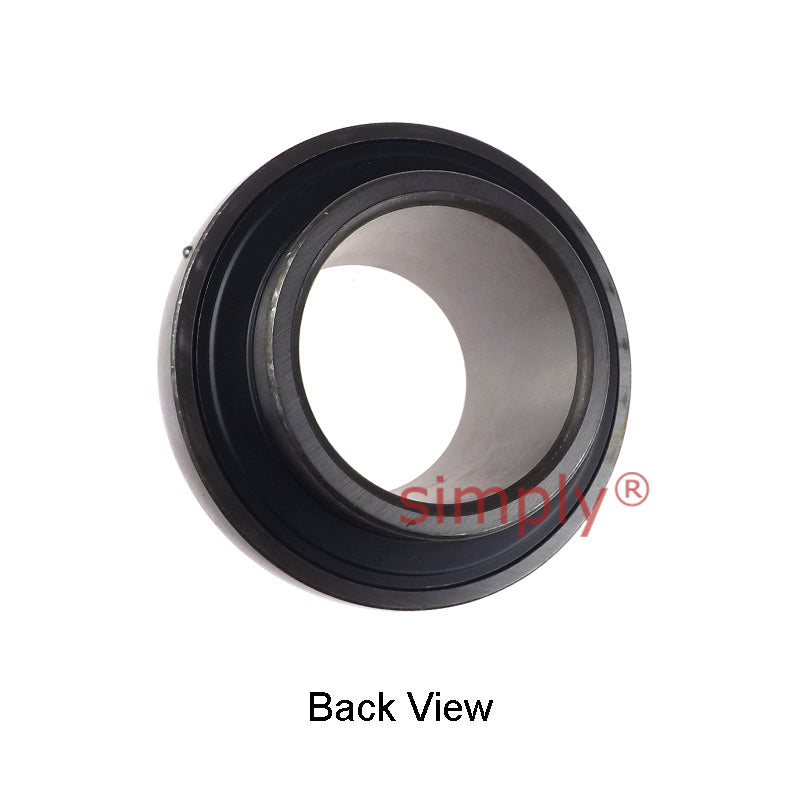

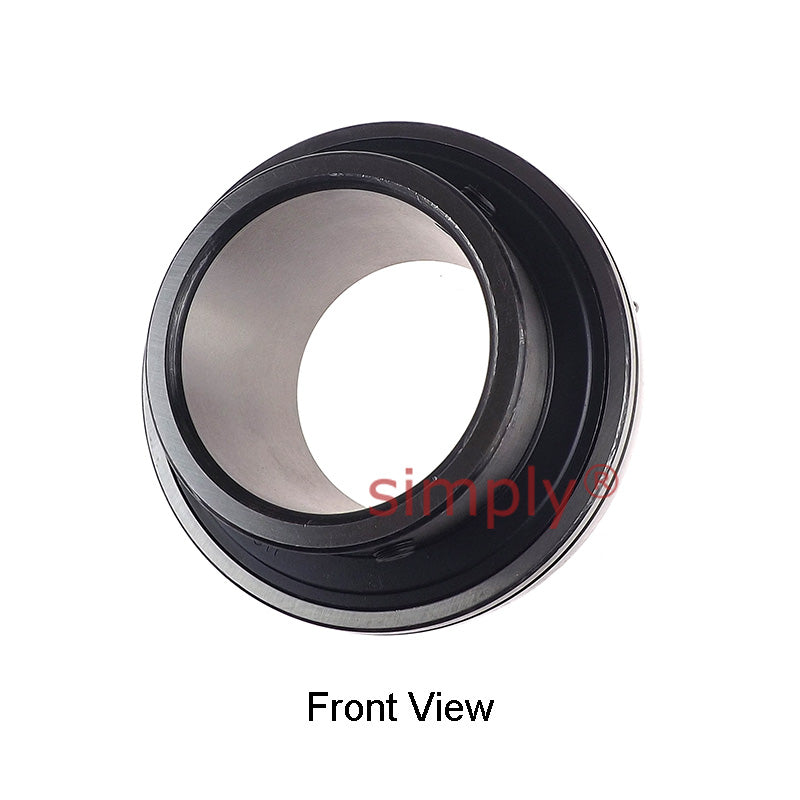

UC218 Metric Bearing Insert with 90mm Bore 160mm Outside Dia
UC218 Metric Bearing Insert with 90mm Bore 160mm Outside Dia
Regular price
$269.87
ex VAT
Regular price
Sale price
$269.87
ex VAT
In stock
Price Break
10+
$240.18
19+
$226.69
29+
$223.99
39+
$221.29
49+
$218.59
74+
$215.90
99+
$202.40
199+
$199.70
249+
$197.01
499+
$194.31
999+
$188.91
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 90mm |
|---|---|
| D | 160mm |
| Bi | 96mm |
| Be | 37mm |
| n | 39.7mm |
| m | 56.3mm |
| G | 14mm |
| Grub screw | M12x1.5 |
| Weight | 4.35 kg |
| Dynamic load | 7500 kgf |
| Static load | 6170 kgf |
