SKU: UC.217

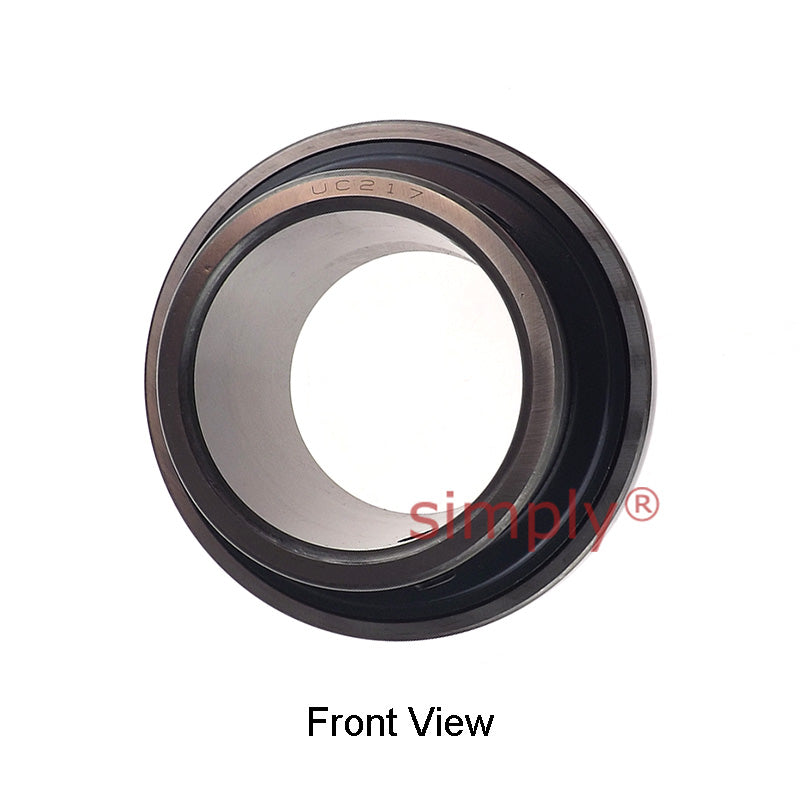

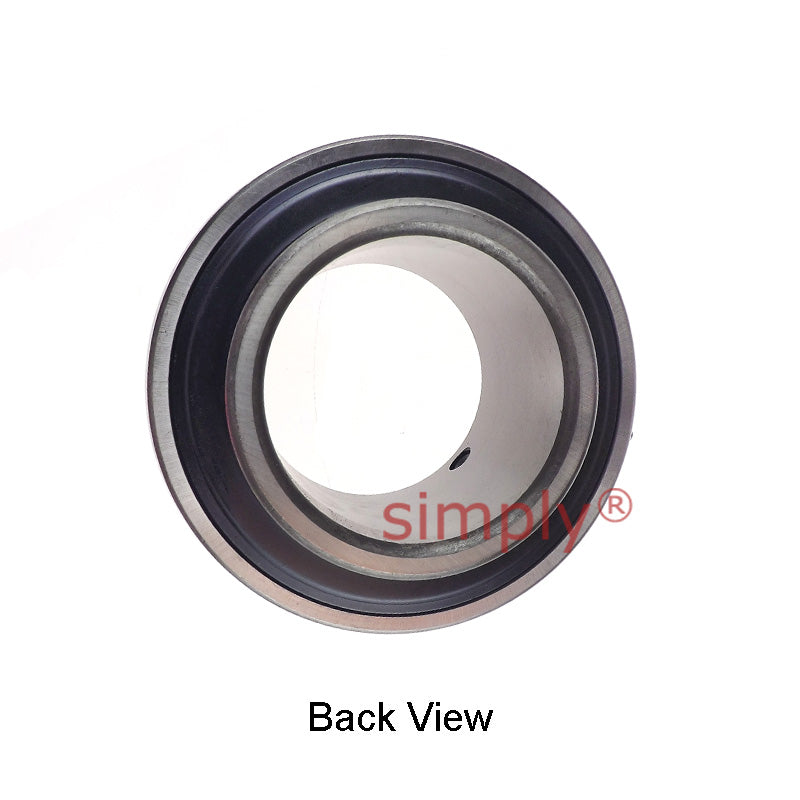

UC217 Metric Bearing Insert with 85mm Bore 150mm Outside Dia
UC217 Metric Bearing Insert with 85mm Bore 150mm Outside Dia
Regular price
$109.72
ex VAT
Regular price
Sale price
$109.72
ex VAT
In stock
Price Break
10+
$97.65
19+
$92.16
29+
$91.07
39+
$89.97
49+
$88.87
74+
$87.78
99+
$82.29
199+
$81.19
249+
$80.10
499+
$79.00
999+
$76.80
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Style:
- UC
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| Bi | 85mm |
| Be | 35mm |
| n | 34.1mm |
| m | 51.6mm |
| G | 14mm |
| Grub screw | M12x1.5 |
| Weight | 3.45 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
