SKU: UC.215

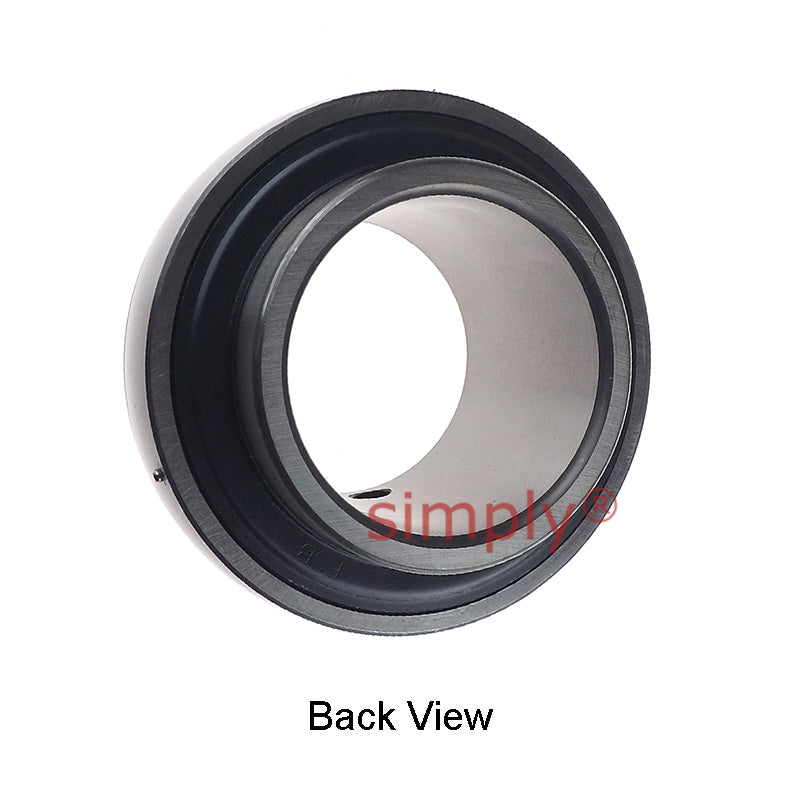

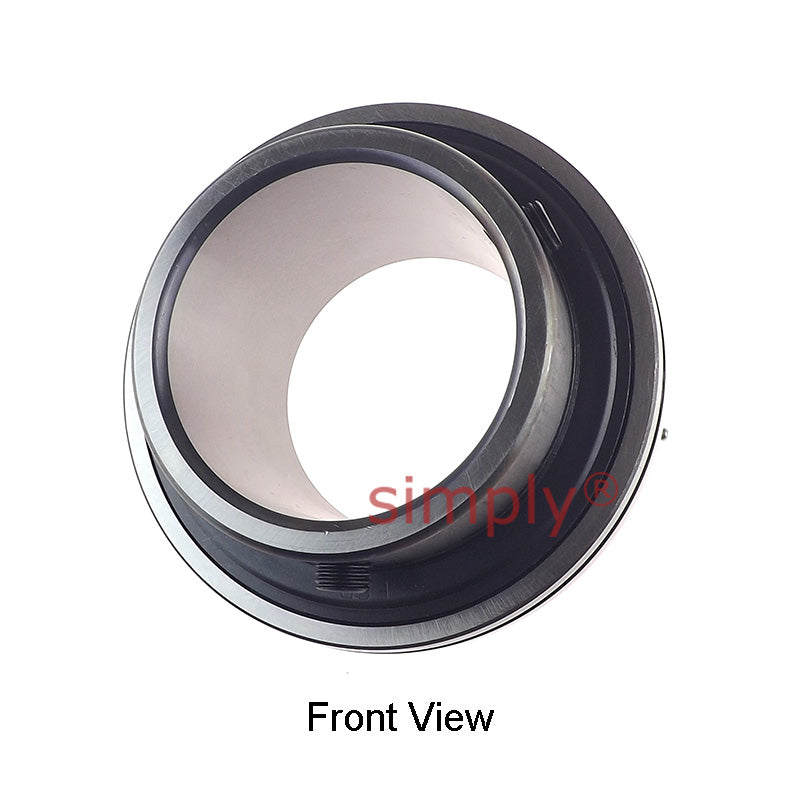

UC215 Metric Bearing Insert with 75mm Bore 130mm Outside Dia
UC215 Metric Bearing Insert with 75mm Bore 130mm Outside Dia
Regular price
$31.71
ex VAT
Regular price
Sale price
$31.71
ex VAT
In stock
Price Break
10+
$28.22
19+
$26.64
29+
$26.32
39+
$26.00
49+
$25.69
74+
$25.37
99+
$23.78
199+
$23.47
249+
$23.15
499+
$22.83
999+
$22.20
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| Bi | 77.8mm |
| Be | 30mm |
| n | 33.3mm |
| m | 44.5mm |
| G | 12mm |
| Grub screw | 7/16"-20 UNF |
| Weight | 2.12 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
