SKU: UC.213-40

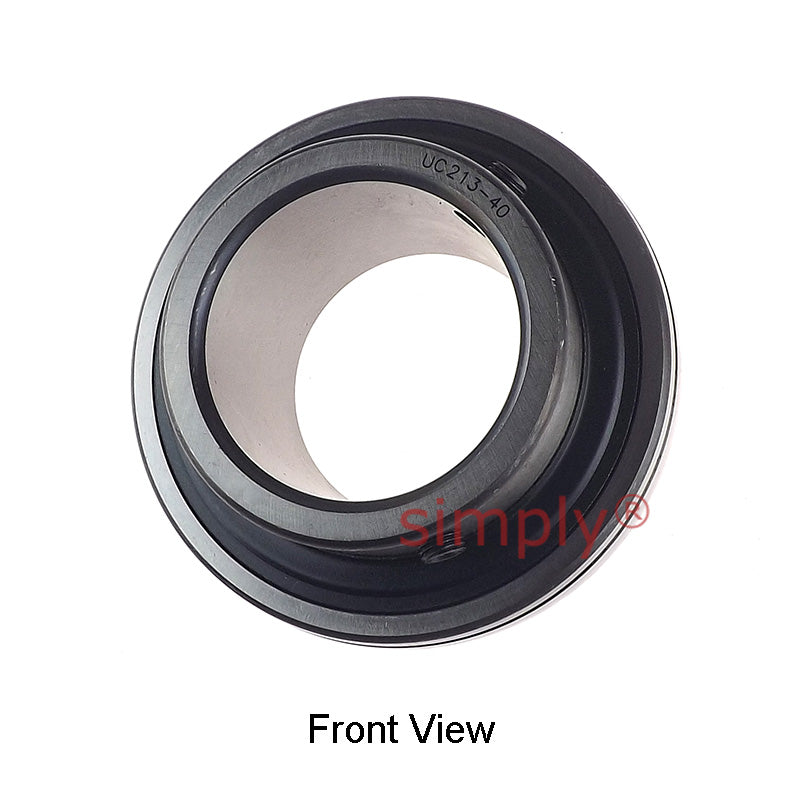

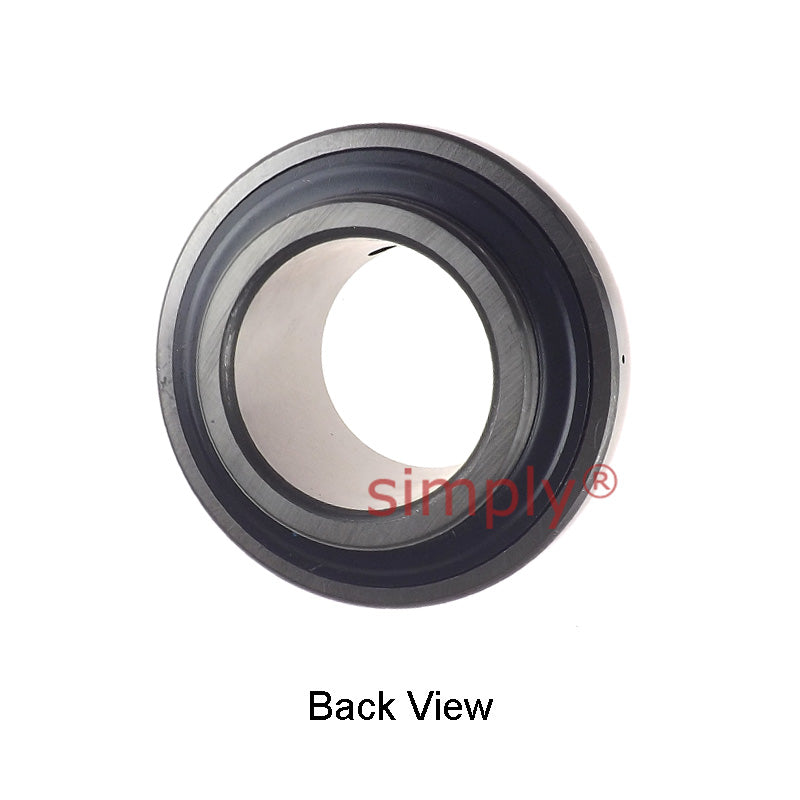

UC213-40 Imperial Bearing Insert with 2-1/2 inch Bore 120mm Outside Dia
UC213-40 Imperial Bearing Insert with 2-1/2 inch Bore 120mm Outside Dia
Regular price
$43.56
ex VAT
Regular price
Sale price
$43.56
ex VAT
In stock
Price Break
10+
$38.77
19+
$36.59
29+
$36.15
39+
$35.72
49+
$35.28
74+
$34.85
99+
$32.67
199+
$32.23
249+
$31.80
499+
$31.36
999+
$30.49
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 120mm
- Style:
- UC
Technical
Technical
| d | 2-1/2 inch |
|---|---|
| D | 120mm |
| Bi | 65.1mm |
| Be | 28mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 1.94 kg |
| Dynamic load | 4480 kgf |
| Static load | 3470 kgf |
