SKU: UC.212-39

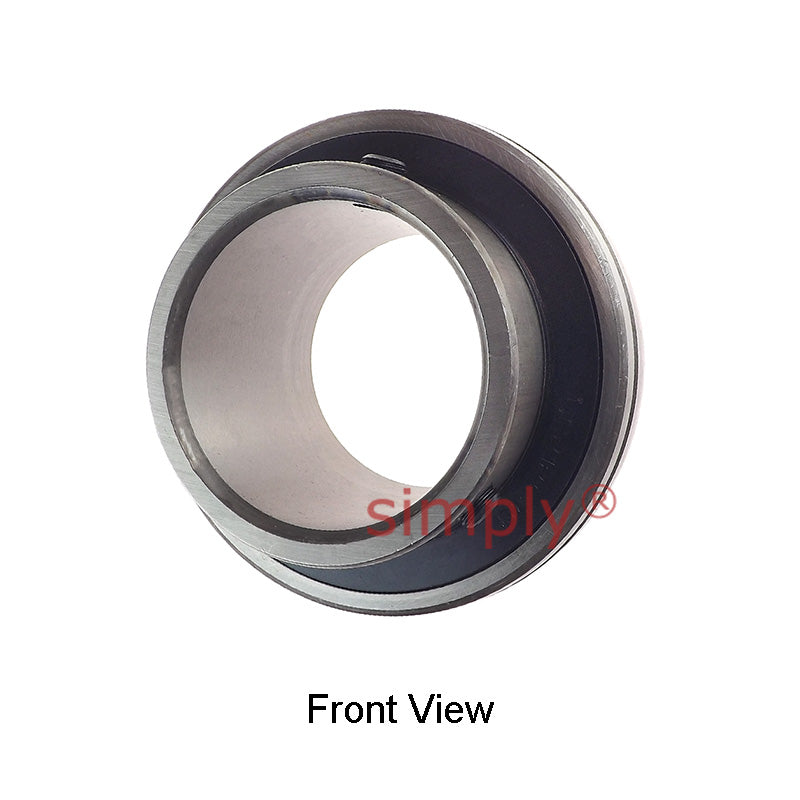

UC212-39 Imperial Bearing Insert with 2-7/16 inch Bore 110mm Outside Dia
UC212-39 Imperial Bearing Insert with 2-7/16 inch Bore 110mm Outside Dia
Regular price
$16.66
ex VAT
Regular price
Sale price
$16.66
ex VAT
In stock
Price Break
3+
$7.87
4+
$7.43
9+
$7.34
19+
$7.25
49+
$7.16
99+
$7.07
499+
$6.63
999+
$6.54
1999+
$6.45
2999+
$6.36
4999+
$6.19
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Outside Diameter:
- 110mm
- Style:
- UC
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 1.52 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
