SKU: UC.212-36.TS.CHAL

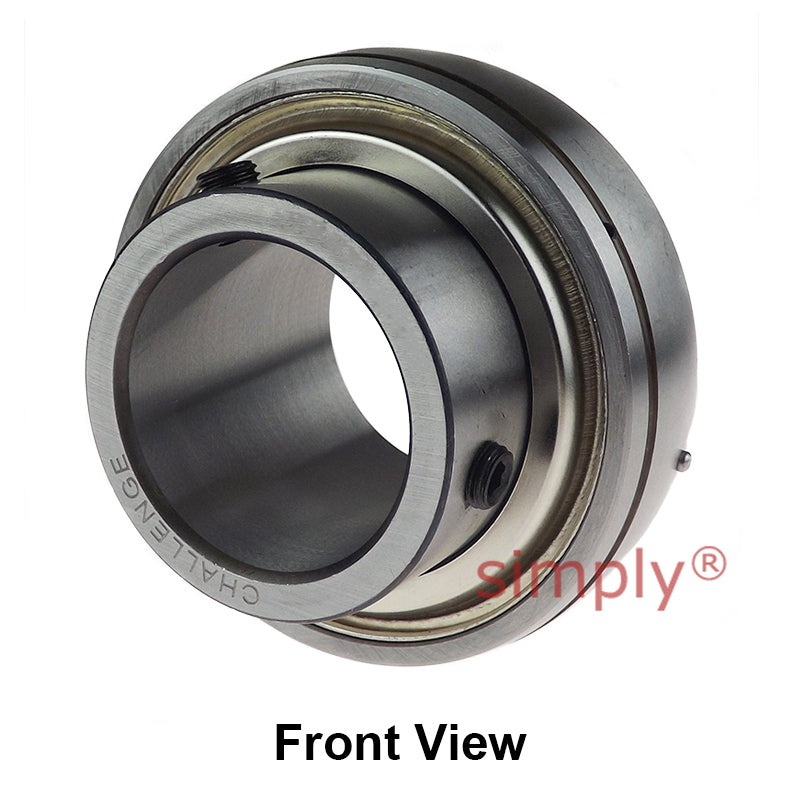

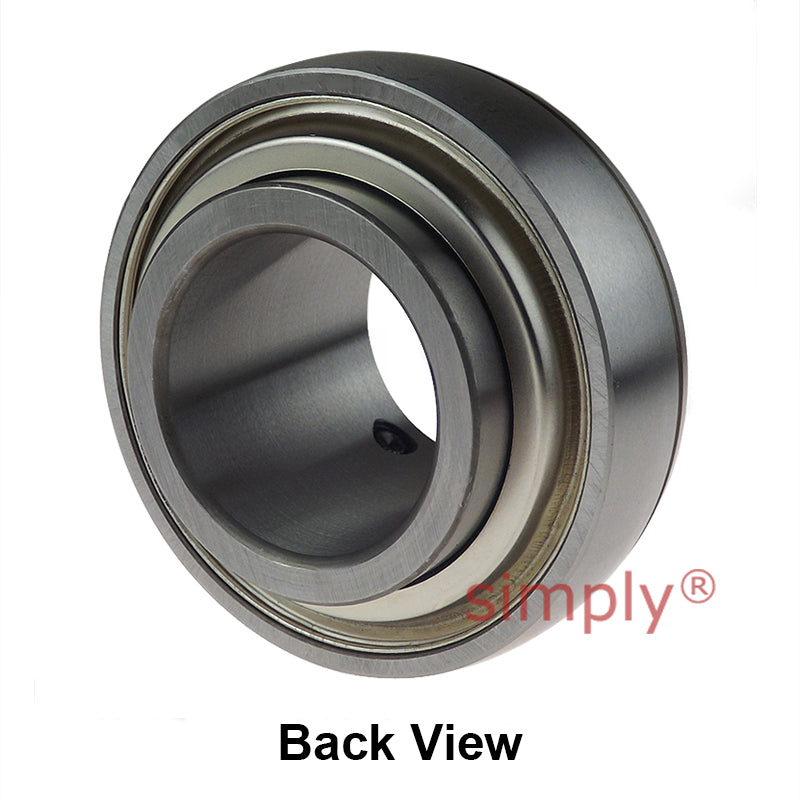

Challenge UC212-36 Imperial Insert with Grub Screws with 2-1/4 inch Bore 110mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC212-36 Imperial Insert with Grub Screws with 2-1/4 inch Bore 110mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$155.00
ex VAT
Regular price
Sale price
$155.00
ex VAT
Equivalent to: UC.212-36
In stock
Price Break
10+
$137.95
19+
$130.20
29+
$128.65
39+
$127.10
49+
$125.55
74+
$124.00
99+
$116.25
199+
$114.70
249+
$113.15
499+
$111.60
999+
$108.50
Couldn't load pickup availability
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.212-36
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| Shaft Diameter d | 2-1/4 inch |
|---|---|
| Outside Diameter D | 110mm |
| Overall Width Bi | 65.1mm |
| Inner Race Width Be | 27mm |
| Back of Bearing to Centre Line n | 25.4mm |
| Front of Bearing to Centre Line m | 39.7mm |
| Dimension G | 10mm |
| Grub Screws x 2 | 3/8 - 24UNF inch |
| Load Rating (Dynamic) | 4100kg |
| Load Rating (Static) | 3150kg |
| Max Speed | 1500 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
