SKU: UC.211-35

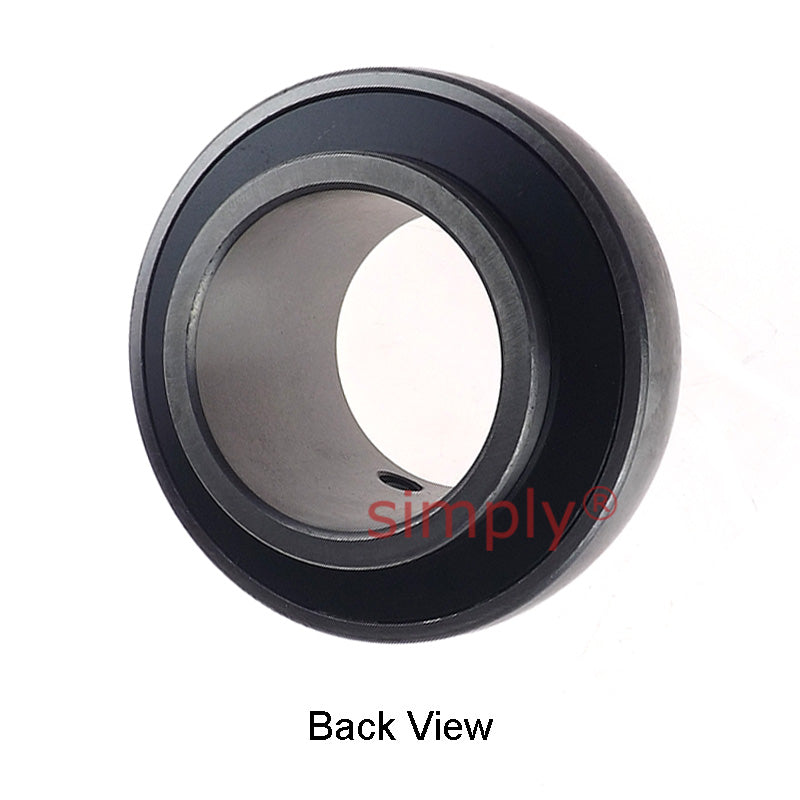

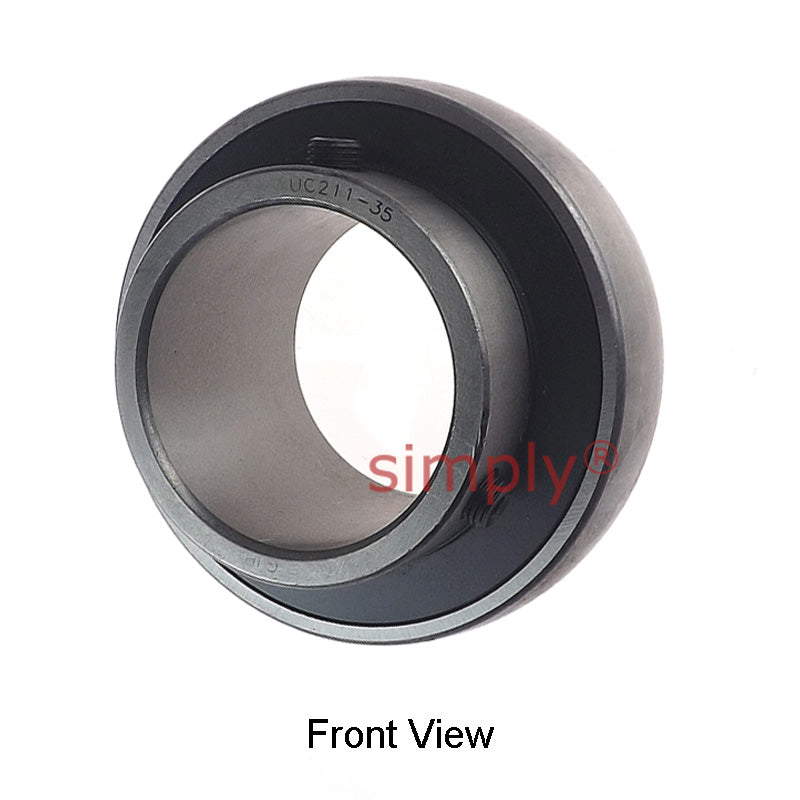

UC211-35 Imperial Bearing Insert with 2-3/16 inch Bore 100mm Outside Dia
UC211-35 Imperial Bearing Insert with 2-3/16 inch Bore 100mm Outside Dia
Regular price
$20.96
ex VAT
Regular price
Sale price
$20.96
ex VAT
In stock
Price Break
3+
$9.90
4+
$9.34
9+
$9.23
19+
$9.12
49+
$9.01
99+
$8.90
499+
$8.34
999+
$8.23
1999+
$8.12
2999+
$8.01
4999+
$7.78
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Outside Diameter:
- 100mm
- Style:
- UC
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| n | 22.2mm |
| m | 33.4mm |
| G | 10mm |
| Grub screw | 3/8-24 UNF |
| Weight | 1.11 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
