SKU: UC.211-32

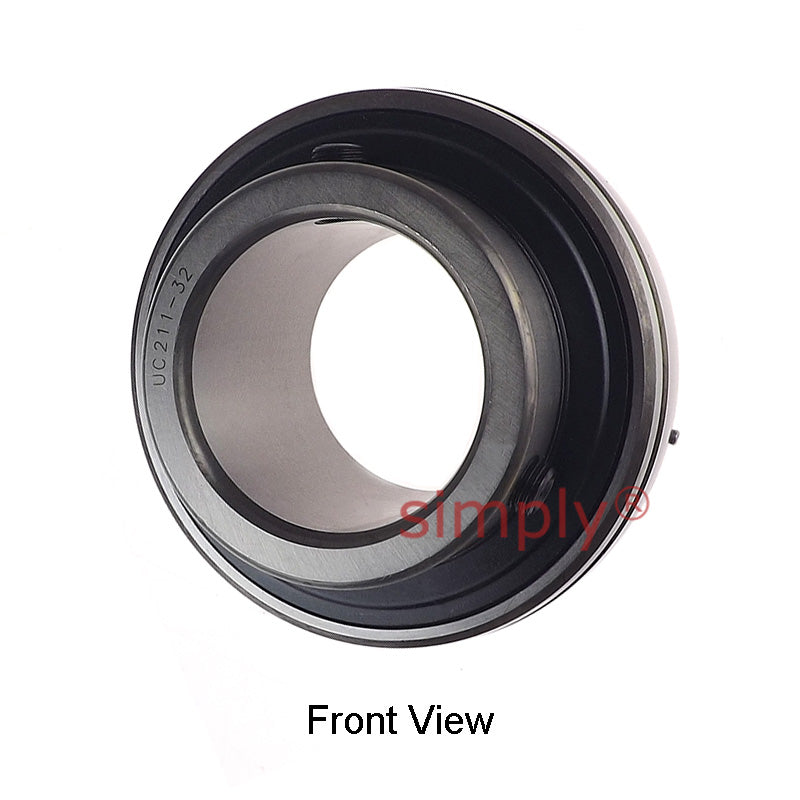

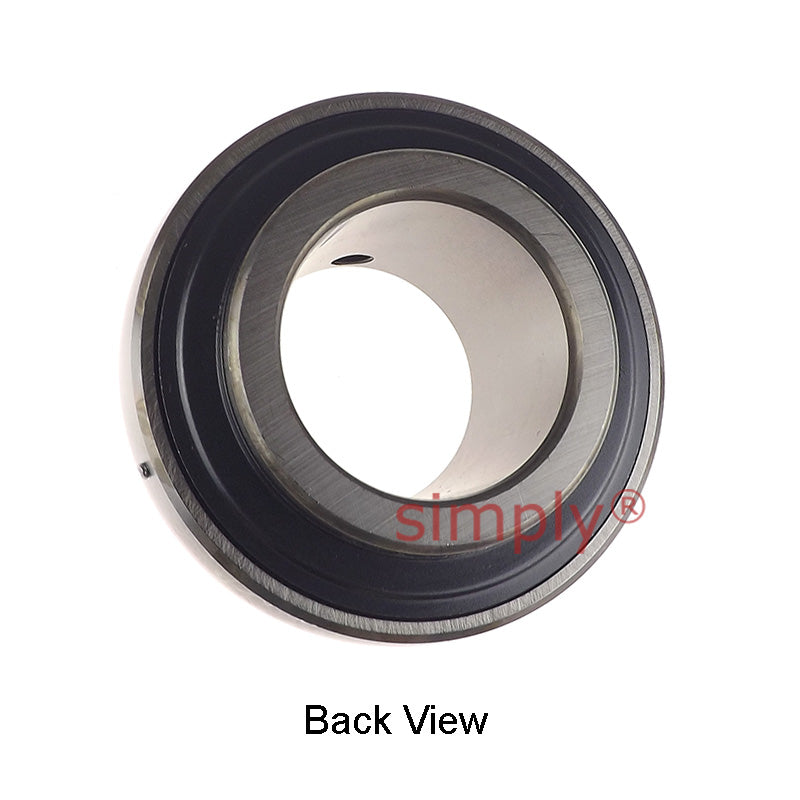

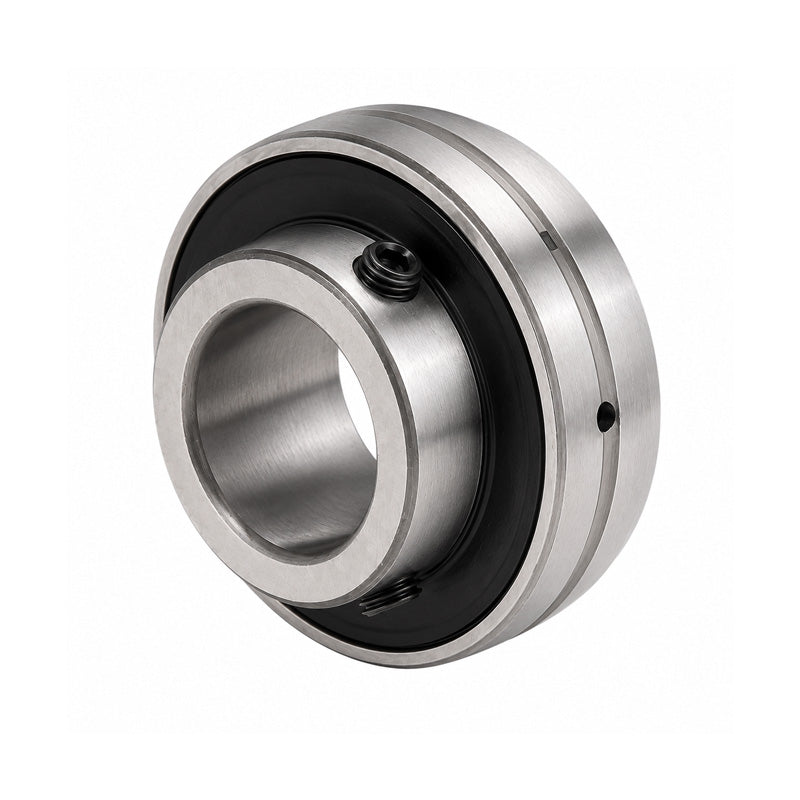

UC211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
UC211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
Regular price
$22.47
ex VAT
Regular price
Sale price
$22.47
ex VAT
Equivalent to: 1055-2G
In stock
Price Break
10+
$20.00
19+
$18.87
29+
$18.65
39+
$18.43
49+
$18.20
74+
$17.98
99+
$16.85
199+
$16.63
249+
$16.40
499+
$16.18
999+
$15.73
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1055-2G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 100mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 2 inch |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| n | 22.2mm |
| m | 33.4mm |
| G | 10mm |
| Grub screw | 3/8-24 UNF |
| Weight | 1.26 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Rec max speed | 3100 rpm |
