SKU: UC.211

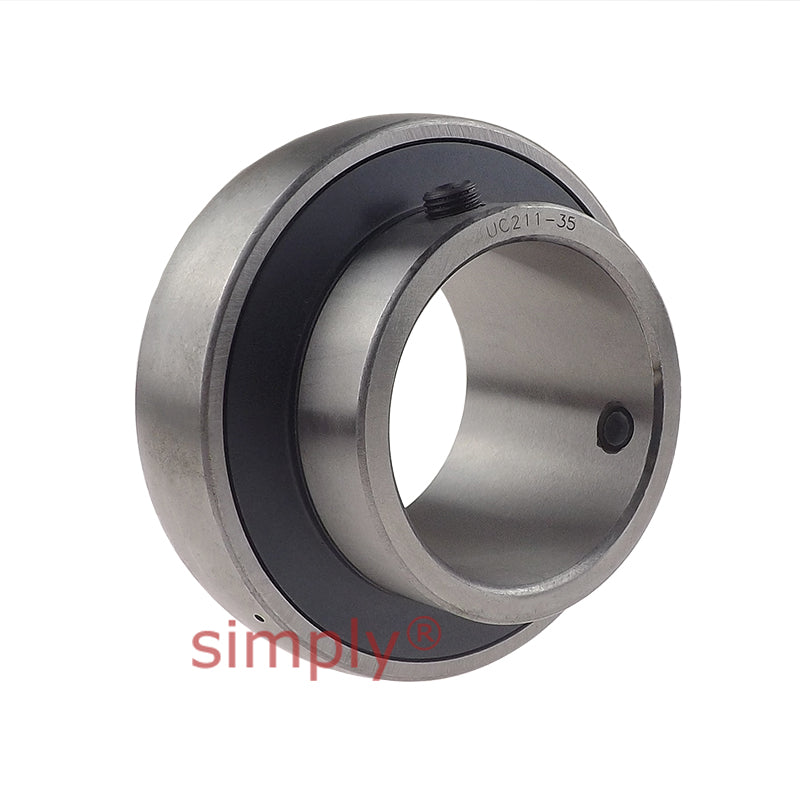

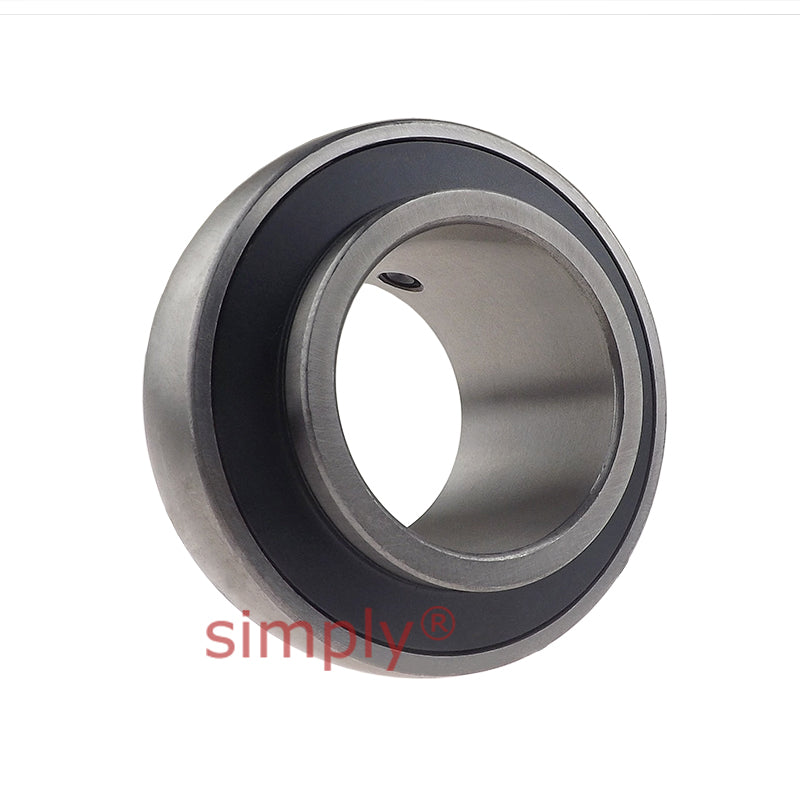

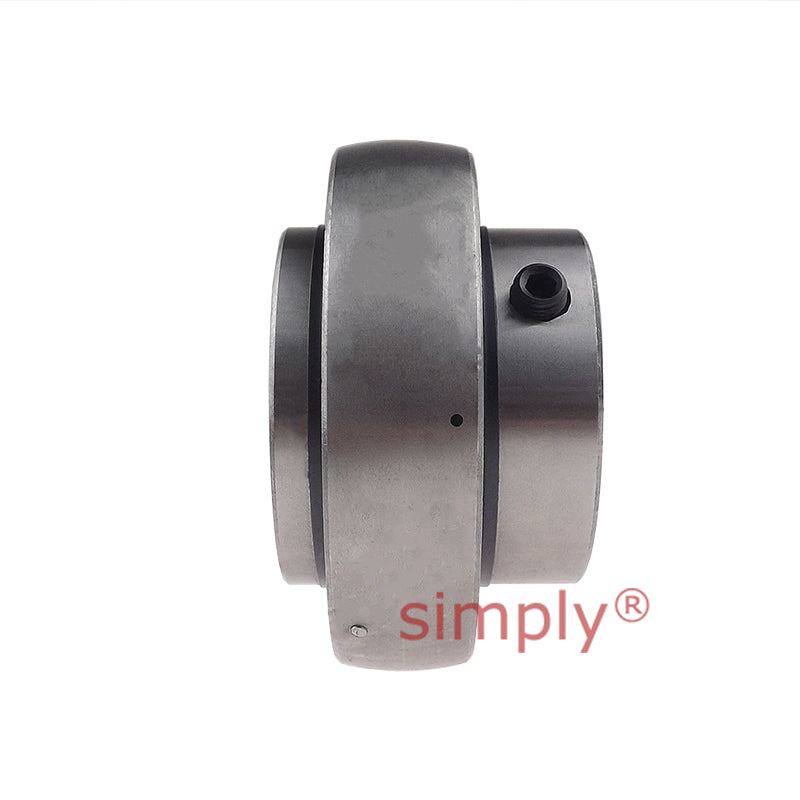

UC211 Metric Bearing Insert with 55mm Bore 100mm Outside Dia
UC211 Metric Bearing Insert with 55mm Bore 100mm Outside Dia
Regular price
$44.19
ex VAT
Regular price
Sale price
$44.19
ex VAT
Equivalent to: 1055-55G
In stock
Price Break
10+
$39.33
19+
$37.12
29+
$36.68
39+
$36.24
49+
$35.79
74+
$35.35
99+
$33.14
199+
$32.70
249+
$32.26
499+
$31.82
999+
$30.93
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1055-55G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Style:
- UC
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| n | 22.2mm |
| m | 33.4mm |
| G | 10mm |
| Grub screw | M10x1.0 |
| Weight | 1.09 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Rec max speed | 3100 rpm |
