SKU: UC.210-32

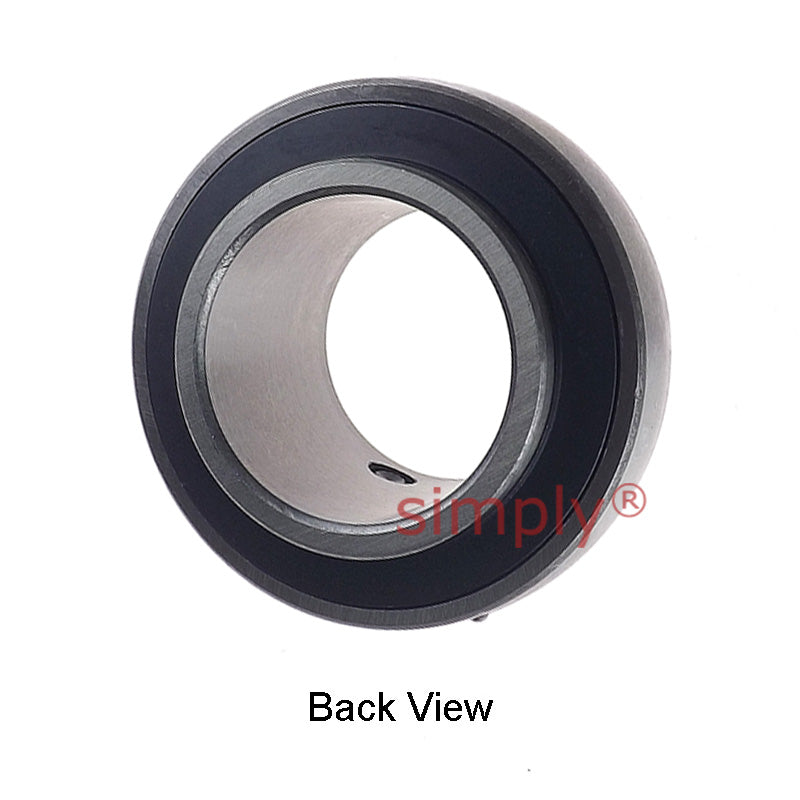

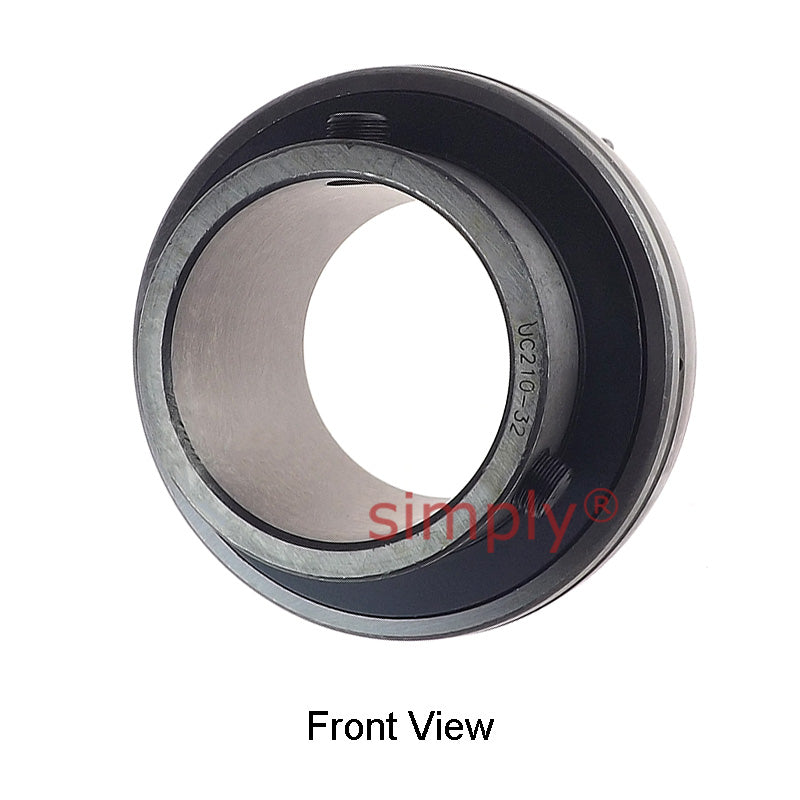

UC210-32 Imperial Bearing Insert with 2 inch Bore 90mm Outside Dia
UC210-32 Imperial Bearing Insert with 2 inch Bore 90mm Outside Dia
Regular price
$29.67
ex VAT
Regular price
Sale price
$29.67
ex VAT
Equivalent to: 1050-2G
In stock
Price Break
10+
$26.41
19+
$24.92
29+
$24.63
39+
$24.33
49+
$24.03
74+
$23.74
99+
$22.25
199+
$21.96
249+
$21.66
499+
$21.36
999+
$20.77
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1050-2G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 90mm
- Style:
- UC
Technical
Technical
| d | 2 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 24mm |
| n | 19mm |
| m | 32.6mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 0.82 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Rec max speed | 3400 rpm |
