SKU: UC.210-30

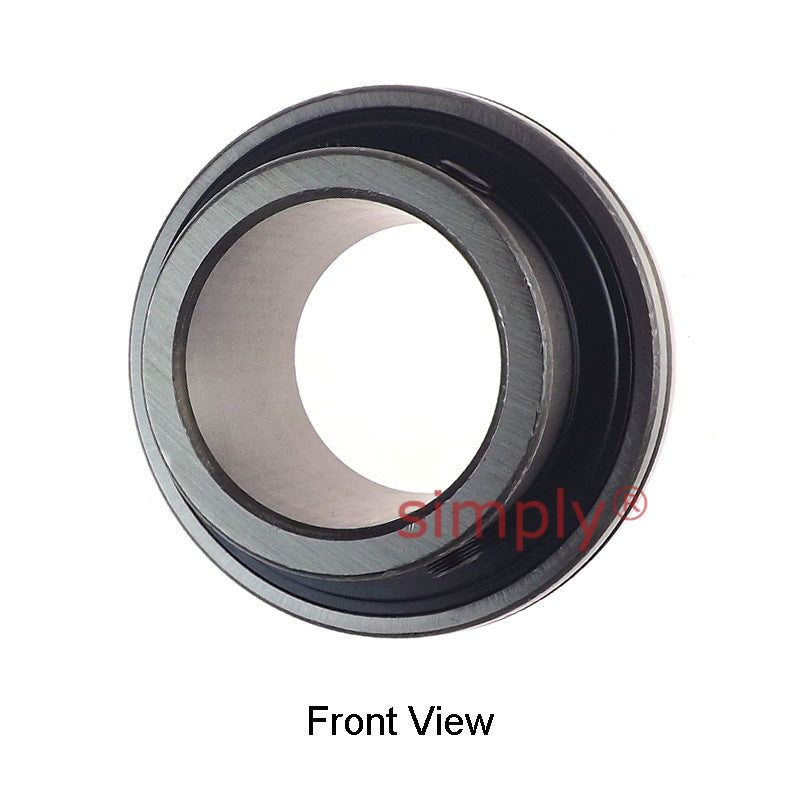

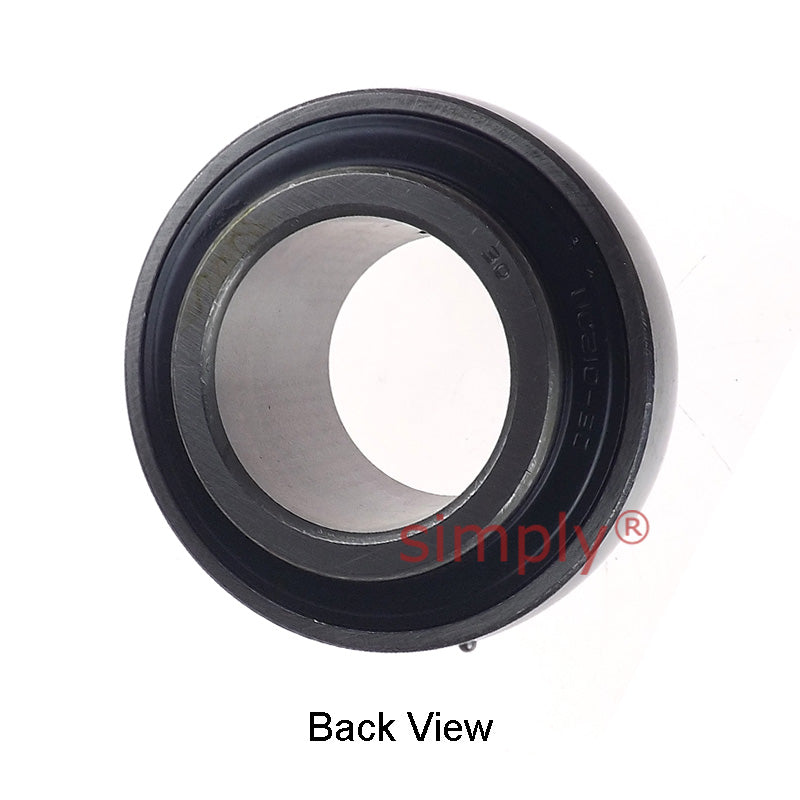

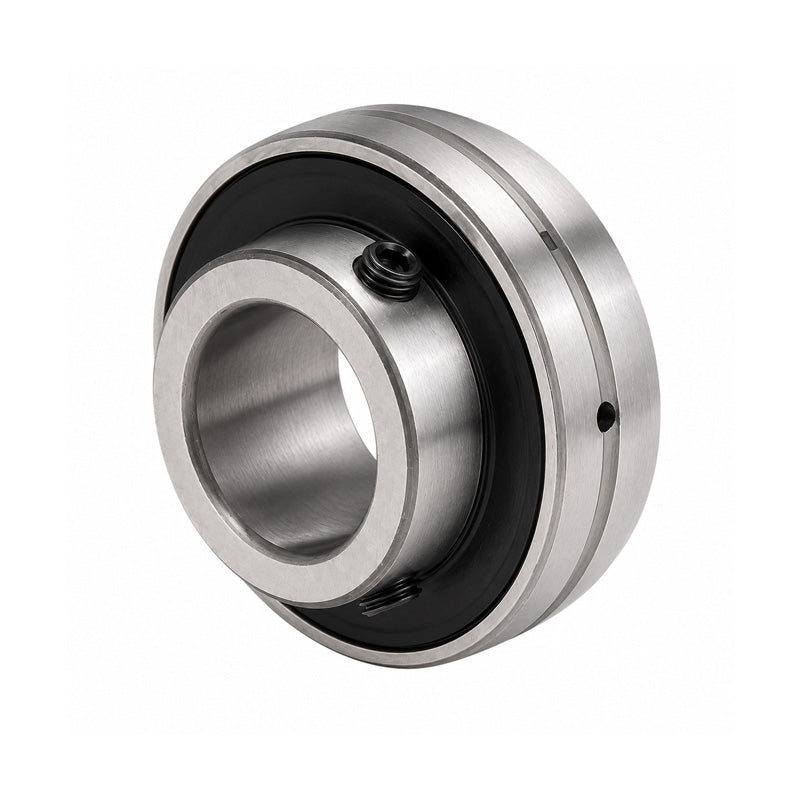

UC210-30 Imperial Bearing Insert with 1-7/8 inch Bore 90mm Outside Dia
UC210-30 Imperial Bearing Insert with 1-7/8 inch Bore 90mm Outside Dia
Regular price
$31.14
ex VAT
Regular price
Sale price
$31.14
ex VAT
Equivalent to: 1050-1-7/8G
In stock
Price Break
10+
$27.71
19+
$26.16
29+
$25.85
39+
$25.53
49+
$25.22
74+
$24.91
99+
$23.36
199+
$23.04
249+
$22.73
499+
$22.42
999+
$21.80
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1050-1-7/8G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Outside Diameter:
- 90mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 1-7/8 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 24mm |
| n | 19mm |
| m | 32.6mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 0.87 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Rec max speed | 3400 rpm |
