SKU: UC.209-28

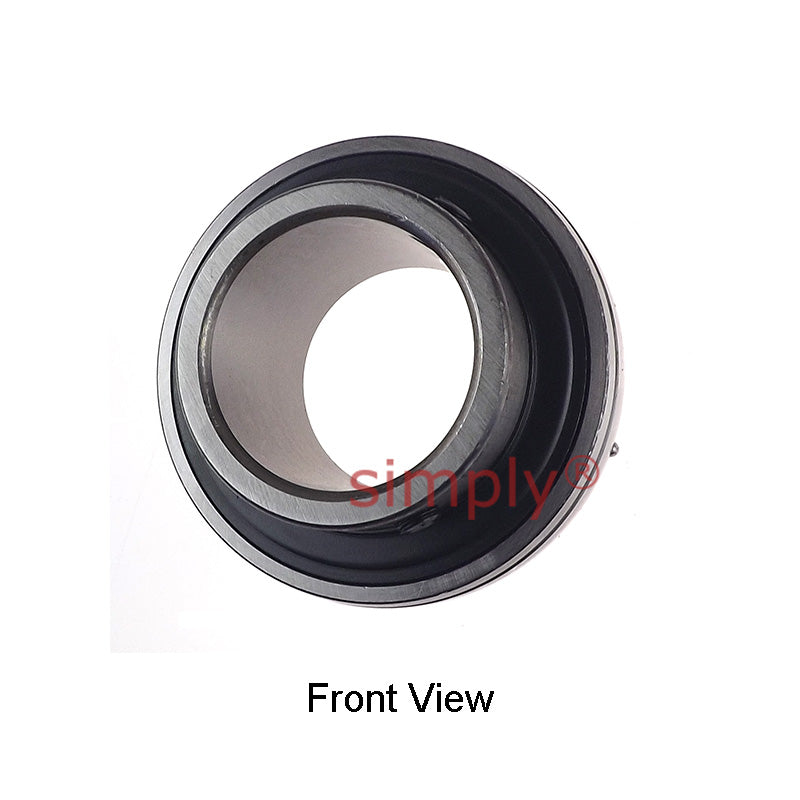

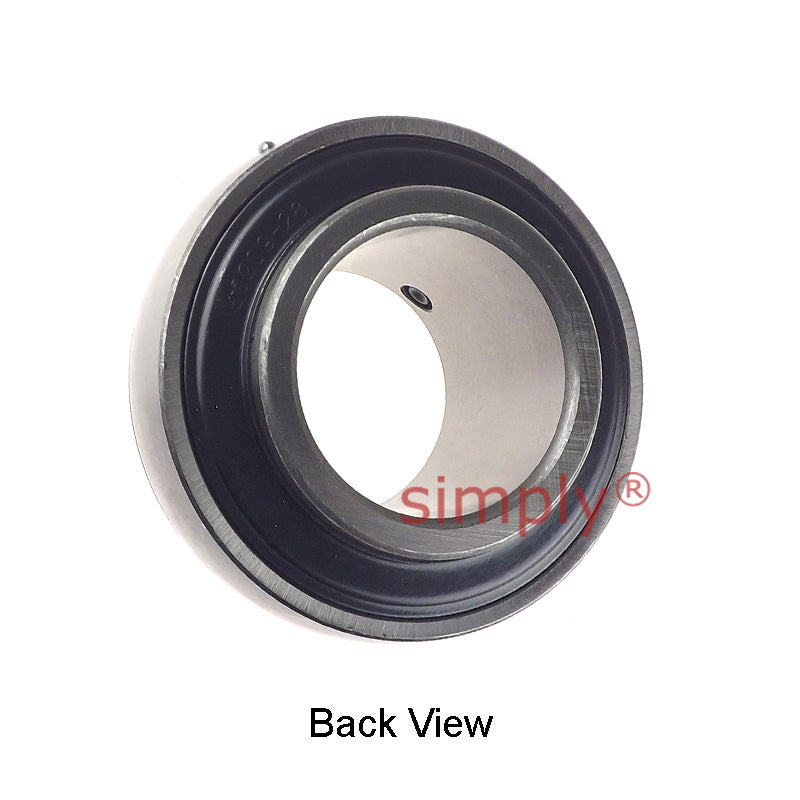

UC209-28 Imperial Bearing Insert with 1-3/4 inch Bore 85mm Outside Dia
UC209-28 Imperial Bearing Insert with 1-3/4 inch Bore 85mm Outside Dia
Regular price
$16.36
ex VAT
Regular price
Sale price
$16.36
ex VAT
Equivalent to: 1045-1-3/4G
In stock
Price Break
3+
$7.73
4+
$7.29
9+
$7.20
19+
$7.12
49+
$7.03
99+
$6.94
499+
$6.51
999+
$6.42
1999+
$6.34
2999+
$6.25
4999+
$6.08
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1045-1-3/4G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 85mm
- Style:
- UC
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| n | 19mm |
| m | 30.2mm |
| G | 10mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.7 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
