SKU: UC.209-26

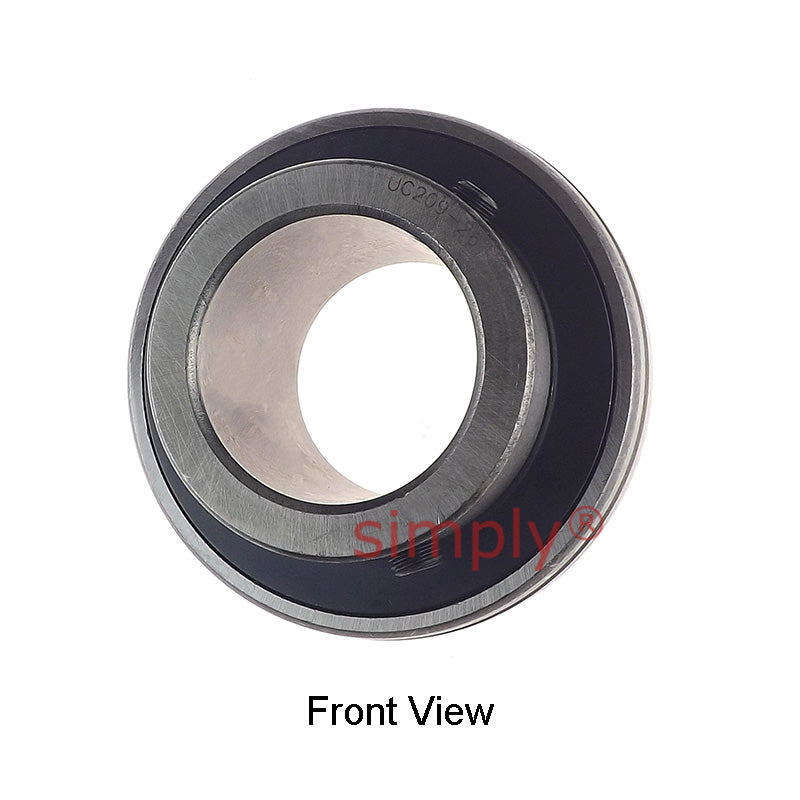

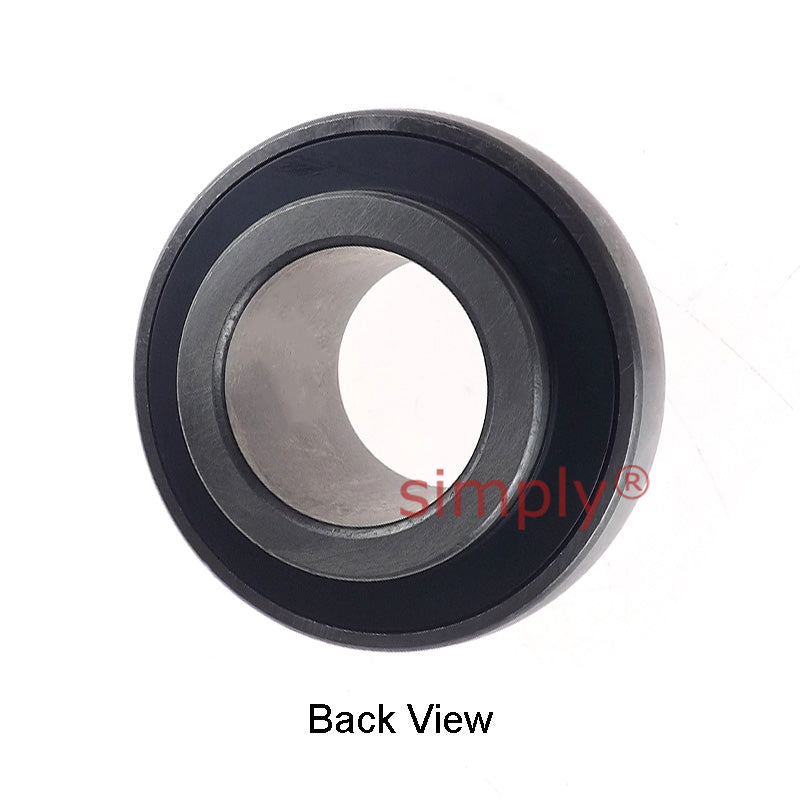

UC209-26 Imperial Bearing Insert with 1-5/8 inch Bore 85mm Outside Dia
UC209-26 Imperial Bearing Insert with 1-5/8 inch Bore 85mm Outside Dia
Regular price
$16.25
ex VAT
Regular price
Sale price
$16.25
ex VAT
Equivalent to: 1045-1-5/8G
In stock
Price Break
10+
$14.46
19+
$13.65
29+
$13.49
39+
$13.33
49+
$13.16
74+
$13.00
99+
$12.19
199+
$12.03
249+
$11.86
499+
$11.70
999+
$11.38
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1045-1-5/8G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 85mm
- Style:
- UC
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| n | 19mm |
| m | 30.2mm |
| G | 10mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.78 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
