SKU: UC.209

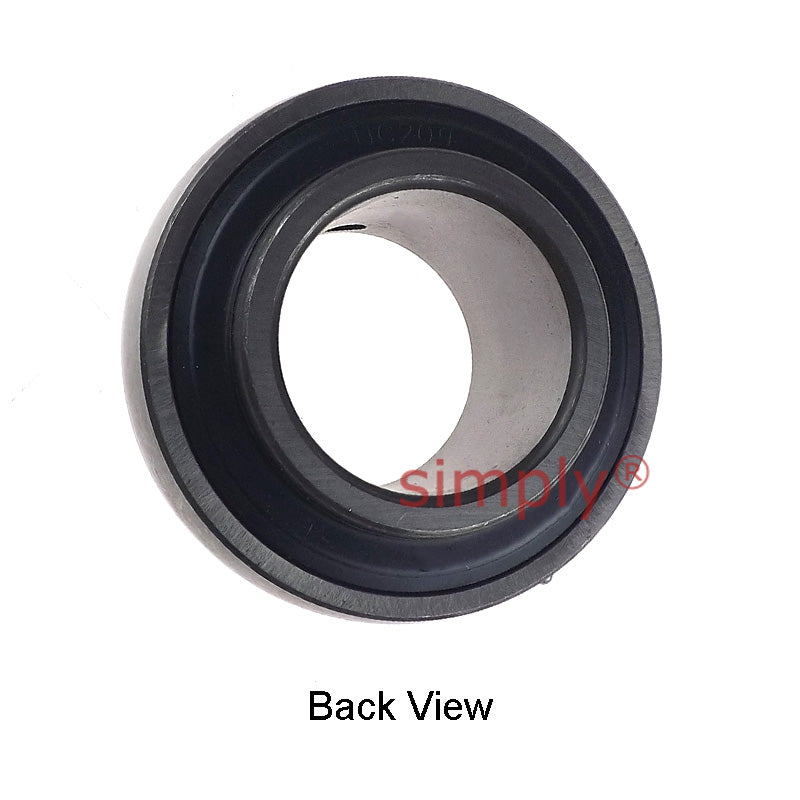

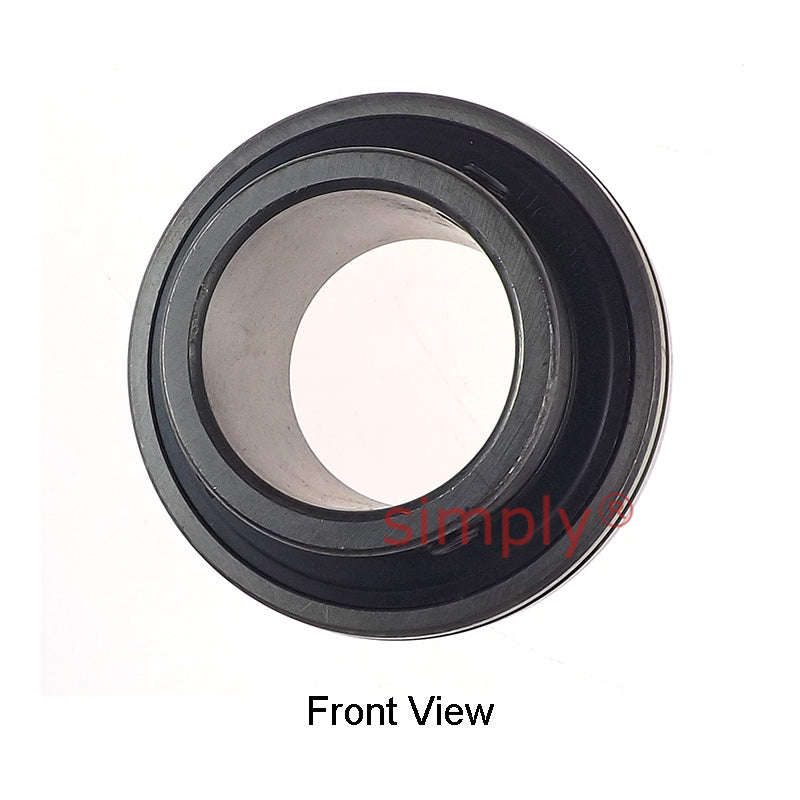

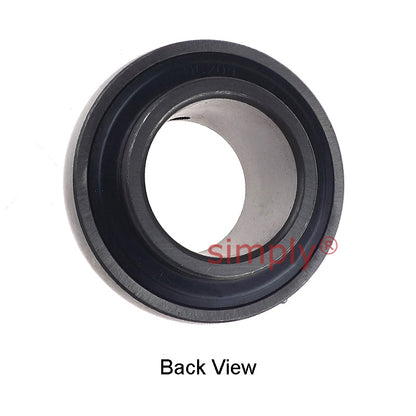

UC209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
UC209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
Regular price
$15.88
ex VAT
Regular price
Sale price
$15.88
ex VAT
Equivalent to: 1045-45G
In stock
Price Break
10+
$14.13
19+
$13.34
29+
$13.18
39+
$13.02
49+
$12.86
74+
$12.70
99+
$11.91
199+
$11.75
249+
$11.59
499+
$11.43
999+
$11.12
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1045-45G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| n | 19mm |
| m | 30.2mm |
| G | 10mm |
| Grub screw | M8x1.0 |
| Weight | 0.68 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
