SKU: UC.207

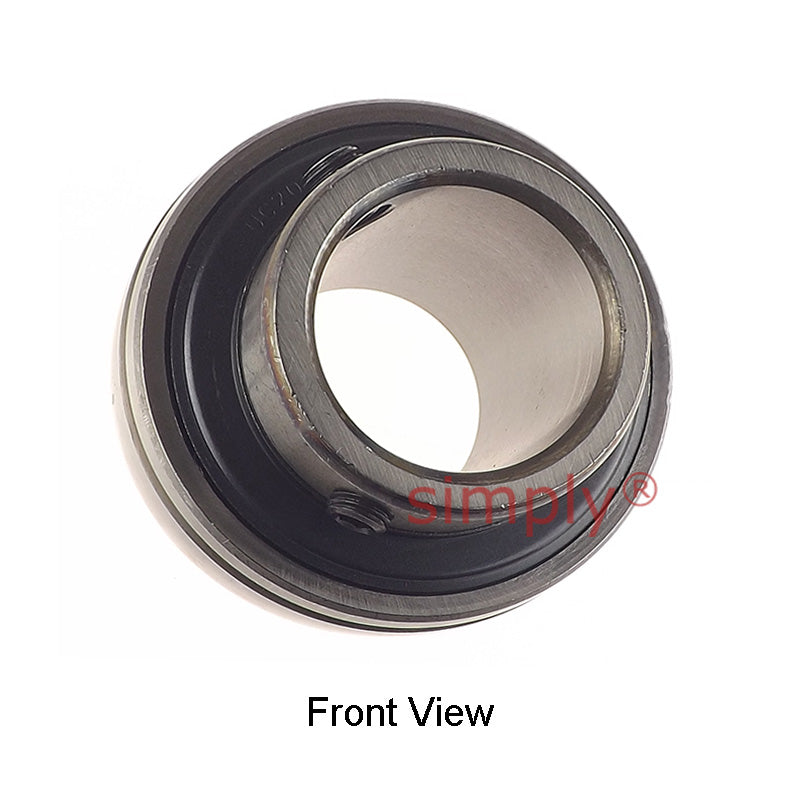

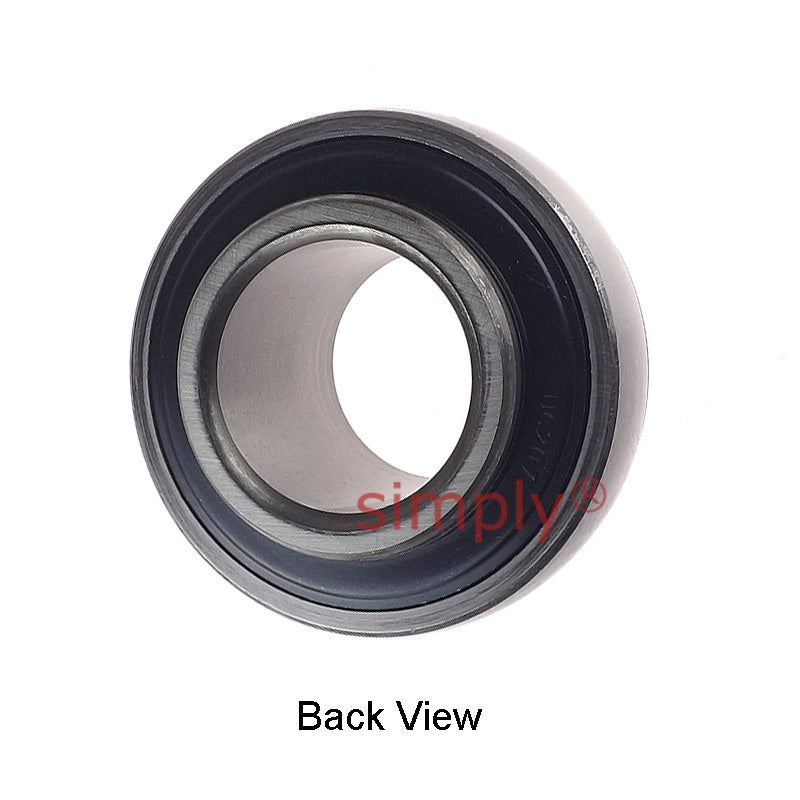

UC207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
UC207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
$17.36
ex VAT
Regular price
Sale price
$17.36
ex VAT
Equivalent to: 1035-35G
In stock
Price Break
10+
$15.45
19+
$14.58
29+
$14.41
39+
$14.24
49+
$14.06
74+
$13.89
99+
$13.02
199+
$12.85
249+
$12.67
499+
$12.50
999+
$12.15
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1035-35G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- UC
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| n | 17.5mm |
| m | 25.4mm |
| G | 6.5mm |
| Grub screw | M8x1.0 |
| Weight | 0.48 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
