SKU: UC.204-12

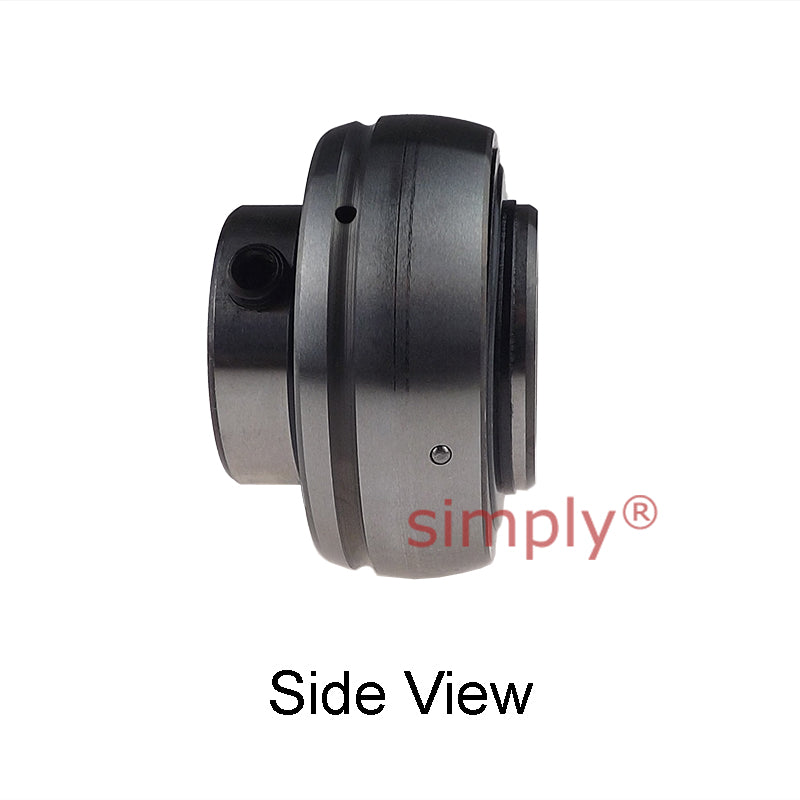

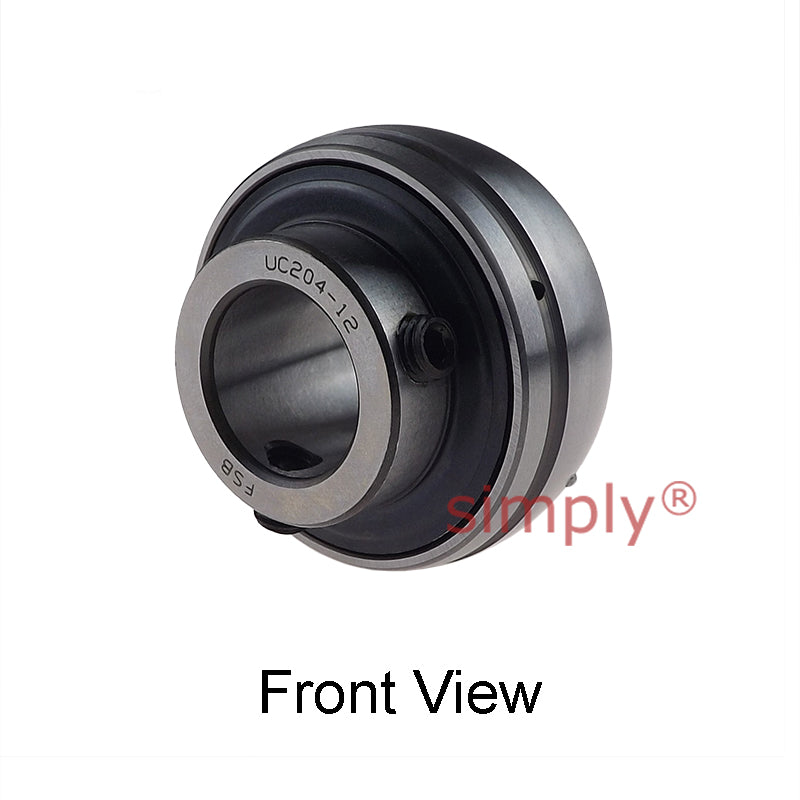

UC204-12 Imperial Bearing Insert with 3/4 inch Bore 47mm Outside Dia
UC204-12 Imperial Bearing Insert with 3/4 inch Bore 47mm Outside Dia
Regular price
$10.07
ex VAT
Regular price
Sale price
$10.07
ex VAT
Equivalent to: 1020-3/4G
In stock
Price Break
10+
$8.96
19+
$8.46
29+
$8.36
39+
$8.26
49+
$8.16
74+
$8.06
99+
$7.55
199+
$7.45
249+
$7.35
499+
$7.25
999+
$7.05
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1020-3/4G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 3/4 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
