SKU: UC.202

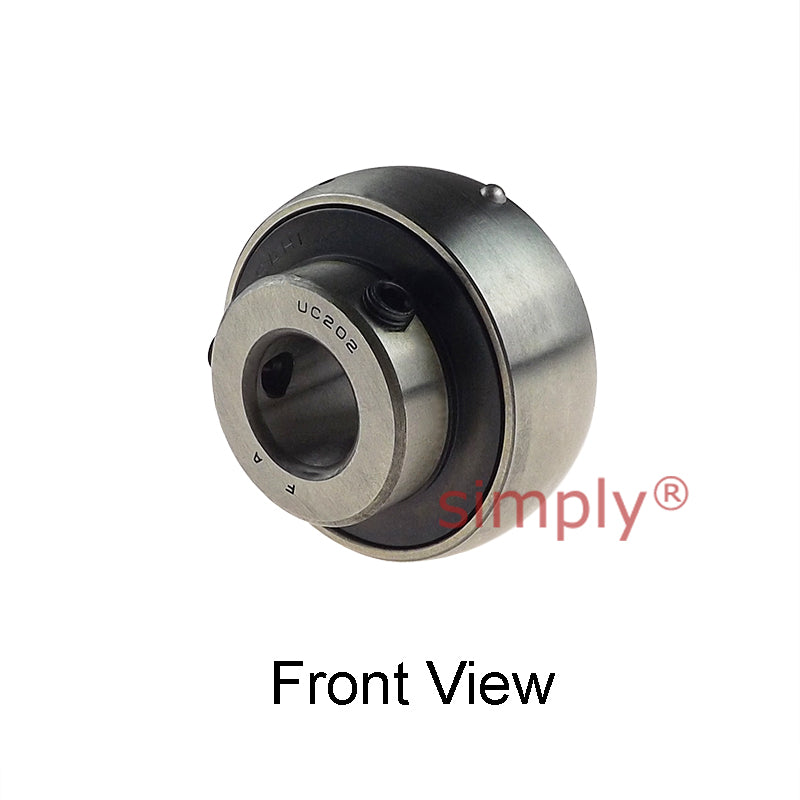

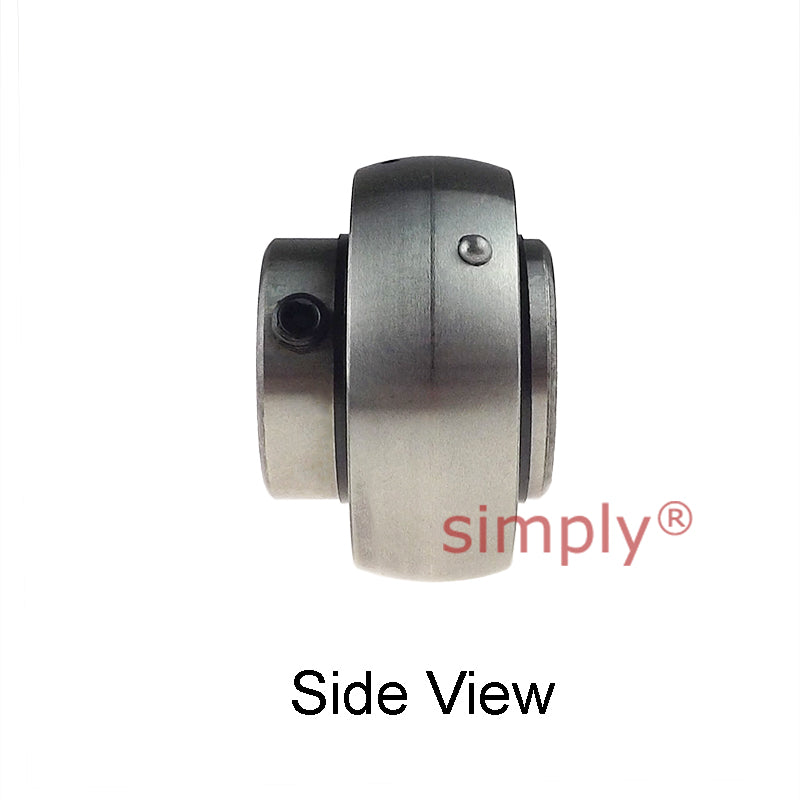

UC202 Metric Bearing Insert with 15mm Bore 47mm Outside Dia
UC202 Metric Bearing Insert with 15mm Bore 47mm Outside Dia
Regular price
$14.96
ex VAT
Regular price
Sale price
$14.96
ex VAT
In stock
Price Break
10+
$13.31
19+
$12.57
29+
$12.42
39+
$12.27
49+
$12.12
74+
$11.97
99+
$11.22
199+
$11.07
249+
$10.92
499+
$10.77
999+
$10.47
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 47mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 15mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | M6x1 |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
