SKU: TU50TF-SKF

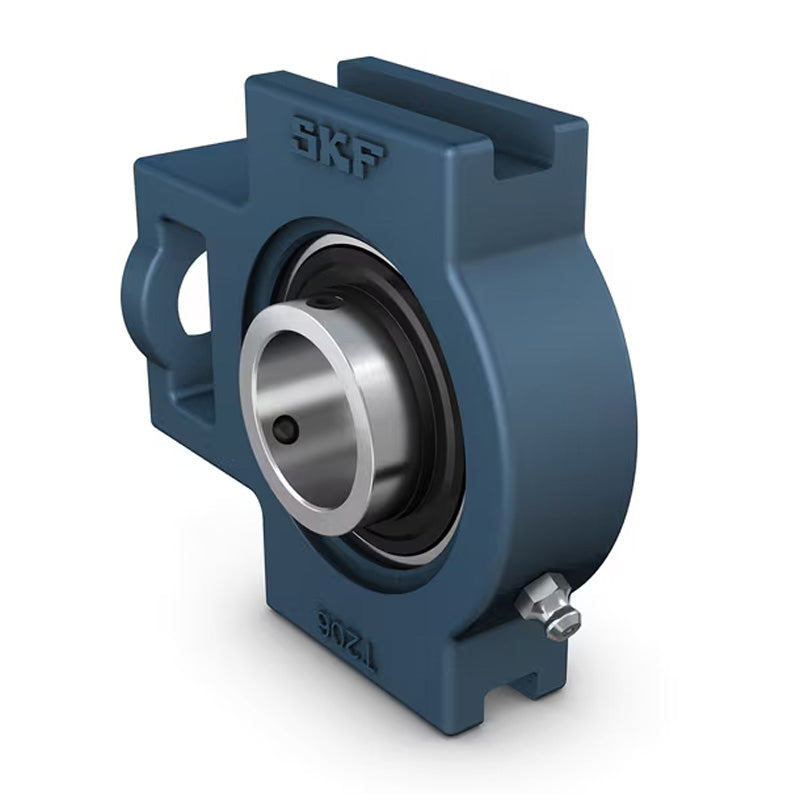

SKF TU50TF Grub Screw Type Take Up Unit 50mm Bore
SKF TU50TF Grub Screw Type Take Up Unit 50mm Bore
Regular price
$191.31
ex VAT
Regular price
Sale price
$191.31
ex VAT
In stock
Price Break
10+
$170.27
19+
$160.70
29+
$158.79
39+
$156.87
49+
$154.96
74+
$153.05
99+
$143.48
199+
$141.57
249+
$139.66
499+
$137.74
999+
$133.92
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Style:
- TU
Technical
Technical
| d | 50mm |
|---|---|
| A | 49mm |
| A1 | 17.5mm |
| A2 | 36mm |
| B | 51.6mm |
| D1 | 29mm |
| H | 117mm |
| H1 | 101mm |
| H2 | 83mm |
| L | 149mm |
| L1 | 90mm |
| L2 | 16mm |
| L3 | 86mm |
| N | 49mm |
| N1 | 19mm |
| s1 | 32.6mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| A5 | 29.5mm |
| Weight | 2.4 kg |
| Compatible end cover | ECY210 |
