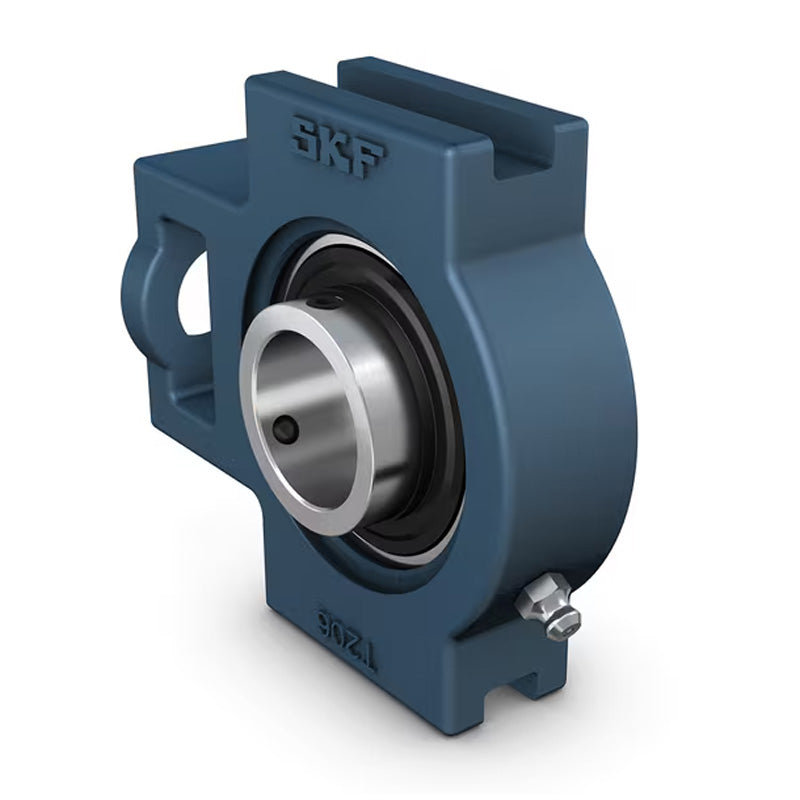

SKF TU40FM Eccentric Locking Collar Take Up Unit 40mm Bore
SKF TU40FM Eccentric Locking Collar Take Up Unit 40mm Bore
Regular price
$188.19
ex VAT
Regular price
Sale price
$188.19
ex VAT
In stock
Price Break
10+
$167.49
19+
$158.08
29+
$156.20
39+
$154.32
49+
$152.43
74+
$150.55
99+
$141.14
199+
$139.26
249+
$137.38
499+
$135.50
999+
$131.73
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and an Eccentric Locking Collar: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- TU
Technical
Technical
| d | 40mm |
|---|---|
| A | 49mm |
| A1 | 17.5mm |
| A2 | 33mm |
| B1 | 43.7mm |
| D1 | 29mm |
| H | 115mm |
| H1 | 101mm |
| H2 | 83mm |
| L | 145mm |
| L1 | 88mm |
| L2 | 15mm |
| L3 | 83mm |
| N | 50mm |
| N1 | 19mm |
| s1 | 32.7mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| A5 | 23.5mm |
| Weight | 2.3 kg |
| Compatible end cover | ECY208 |
