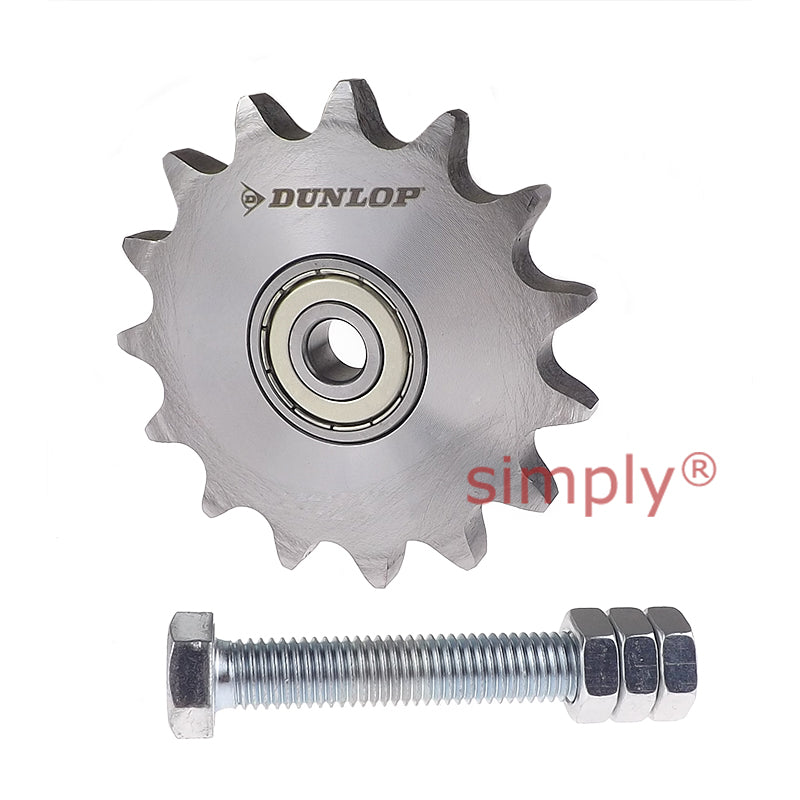

Dunlop 16BX13T N1 inch Sprocket for SE38 Tension Arm
Dunlop 16BX13T N1 inch Sprocket for SE38 Tension Arm
Regular price
$44.74
ex VAT
Regular price
Sale price
$44.74
ex VAT
In stock
Price Break
10+
$39.82
19+
$37.58
29+
$37.13
39+
$36.69
49+
$36.24
74+
$35.79
99+
$33.56
199+
$33.11
249+
$32.66
499+
$32.21
999+
$31.32
Couldn't load pickup availability
Description
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M20
- Number of Teeth:
- 13
- Part No:
- N1 inch
Technical
Technical
| Part No. | N1 inch |
|---|---|
| No of Teeth | 13 |
| W | M20mm |
| L | 100mm |
| A | 20mm |
| B | 16.1mm |
| C | 15mm |
| D | 106.14mm |
| Torque Hex Nut 0.5d | 172 Nm |
| Adjusting Range Track R | 38mm |
| Size SE | 38 |
| To Fit Roller Chain ANSI | 80 |
| To Fit Roller Chain DIN 8187 | ISO 16 B |
