Dunlop SE18 Chain and V-Belt Tension Arm
Dunlop SE18 Chain and V-Belt Tension Arm
Regular price
$53.68
ex VAT
Regular price
Sale price
$53.68
ex VAT
In stock
Price Break
10+
$47.78
19+
$45.09
29+
$44.55
39+
$44.02
49+
$43.48
74+
$42.94
99+
$40.26
199+
$39.72
249+
$39.19
499+
$38.65
999+
$37.58
Couldn't load pickup availability
Description
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M10
- Part No:
- SE18

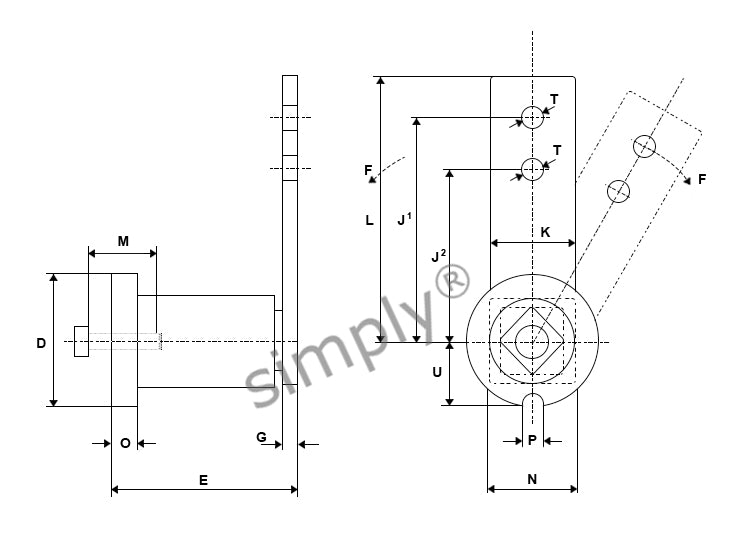

Technical
Technical
| Part No. | SE18 |
|---|---|
| D | 58mm |
| E | 79 (+1.5/-0.5)mm |
| G | 7mm |
| H | M10 |
| J<sup>1</sup> | 100mm |
| J<sup>2</sup> | 100mm |
| K | 30mm |
| L | 115mm |
| M | 30mm |
| N | 35mm |
| O | 10.5mm |
| P | 8.5mm |
| T | 10.5mm |
| U | 25.3mm |
