SKU: TEN-ARM-SE15-DUN

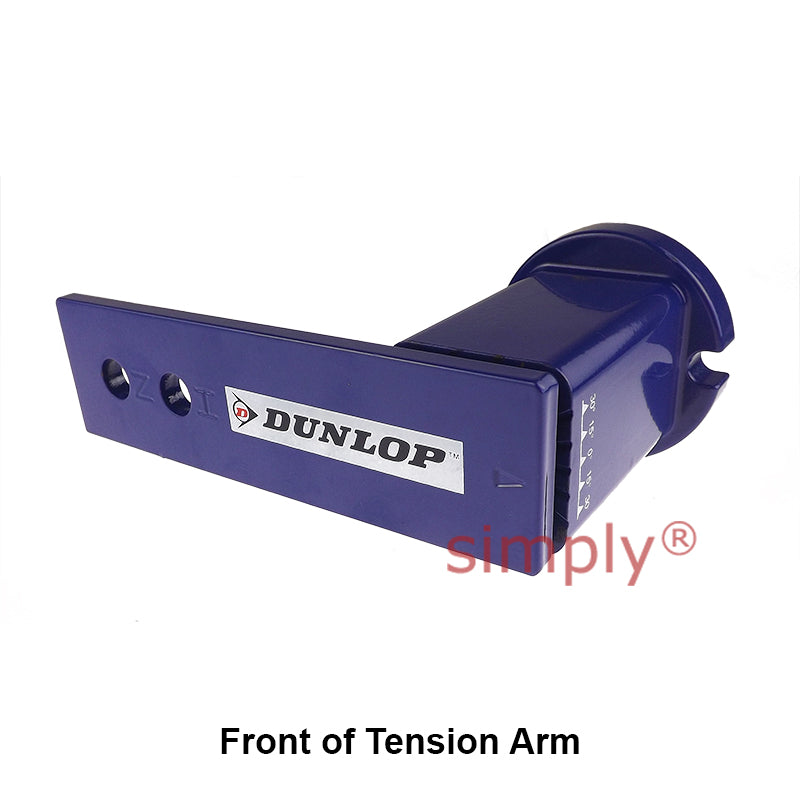

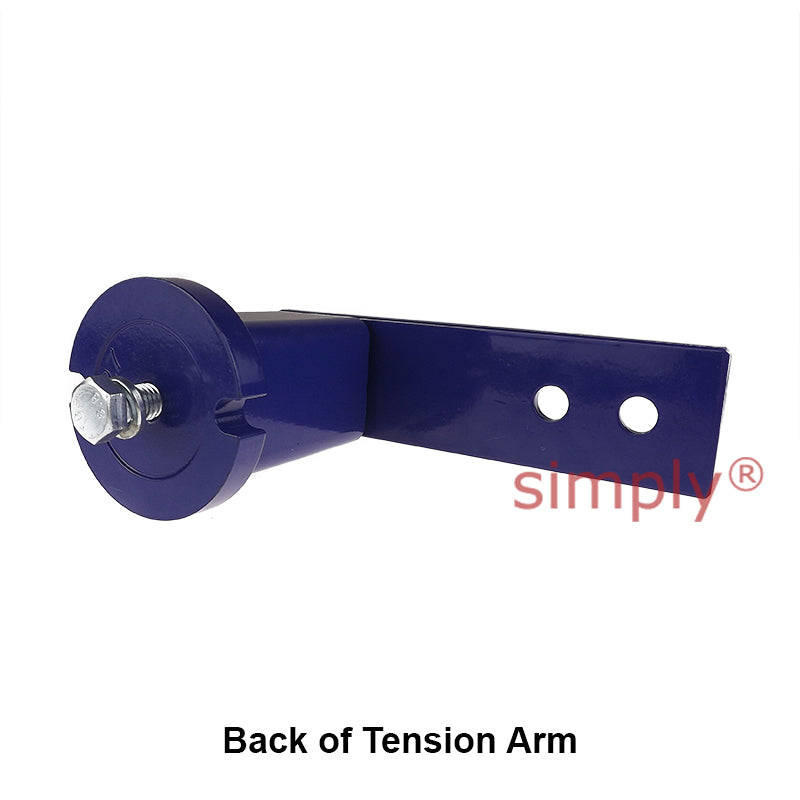

Dunlop SE15 Chain and V-Belt Tension Arm
Dunlop SE15 Chain and V-Belt Tension Arm
Regular price
$44.98
ex VAT
Regular price
Sale price
$44.98
ex VAT
In stock
Price Break
3+
$21.24
5+
$20.05
9+
$19.81
19+
$19.57
49+
$19.33
74+
$19.09
99+
$17.90
199+
$17.66
249+
$17.42
499+
$17.19
999+
$16.71
Description
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M8
- Part No:
- SE15
Technical
Technical
| Part No. | SE15 |
|---|---|
| D | 45mm |
| E | 64 (+1/-0.5)mm |
| G | 5mm |
| H | M8 |
| J<sup>1</sup> | 100mm |
| J<sup>2</sup> | 100mm |
| K | 25mm |
| L | 112.5mm |
| M | 25mm |
| N | 30mm |
| O | 8mm |
| P | 8.5mm |
| T | 10.5mm |
| U | 20.8mm |
