SKU: TBS-S-16B-18-DF

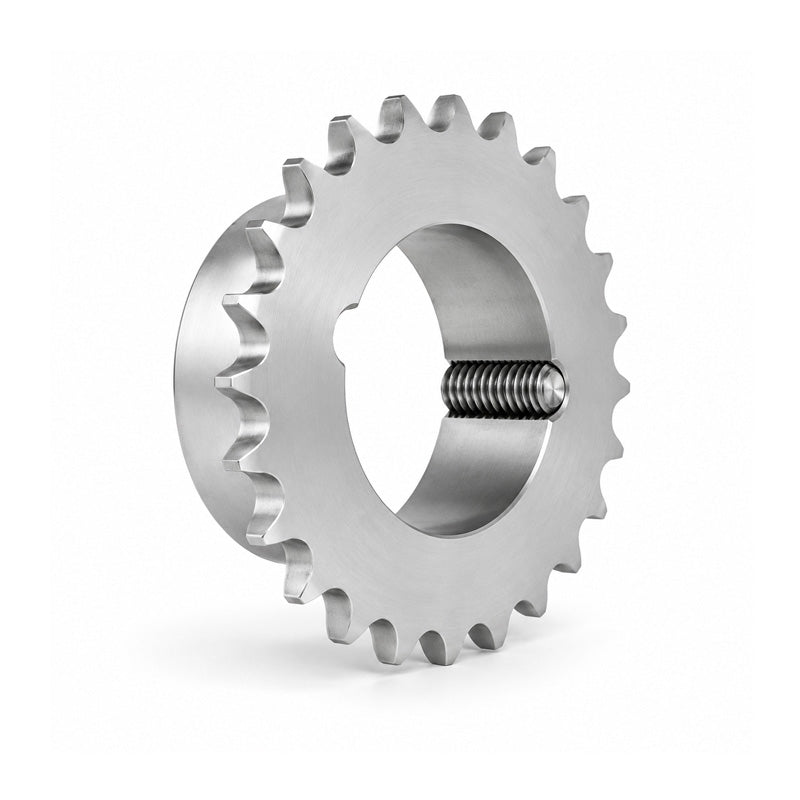

Drive-Flex 18 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
Drive-Flex 18 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
Regular price
$56.11
ex VAT
Regular price
Sale price
$56.11
ex VAT
In stock
Price Break
10+
$49.94
19+
$47.13
29+
$46.57
39+
$46.01
49+
$45.45
74+
$44.89
99+
$42.08
199+
$41.52
249+
$40.96
499+
$40.40
999+
$39.28
Couldn't load pickup availability
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
- Brand / Quality:
- Drive-Flex - High Quality
- Number of Teeth:
- 18
- Chain Pitch:
- 25.4mm = 1 inch
- Item Type:
- BS European Standard
Technical
Technical
| Tooth Radius r3 | 26mm |
|---|---|
| Chamfer c | 2.5mm |
| Tooth Width b1 | 15.8mm |
| Tooth Width B1 | 16.2mm |
| Tooth Width B2 | 47.7mm |
| Tooth Width B3 | 79.6mm |
| Pitch | 25.4mm |
| Width Between Inner | 17.02mm |
| Roller Diameter | 15.88mm |
| No. of Teeth | 18 |
| Outer Diameter de | 157mm |
| Pitch Diameter dp | 146.28mm |
| Hub Diameter dm | 108mm |
| Length Through Bore A | 45mm |
| Reference | 81-18 |
| Taper Bush | 2517 |
