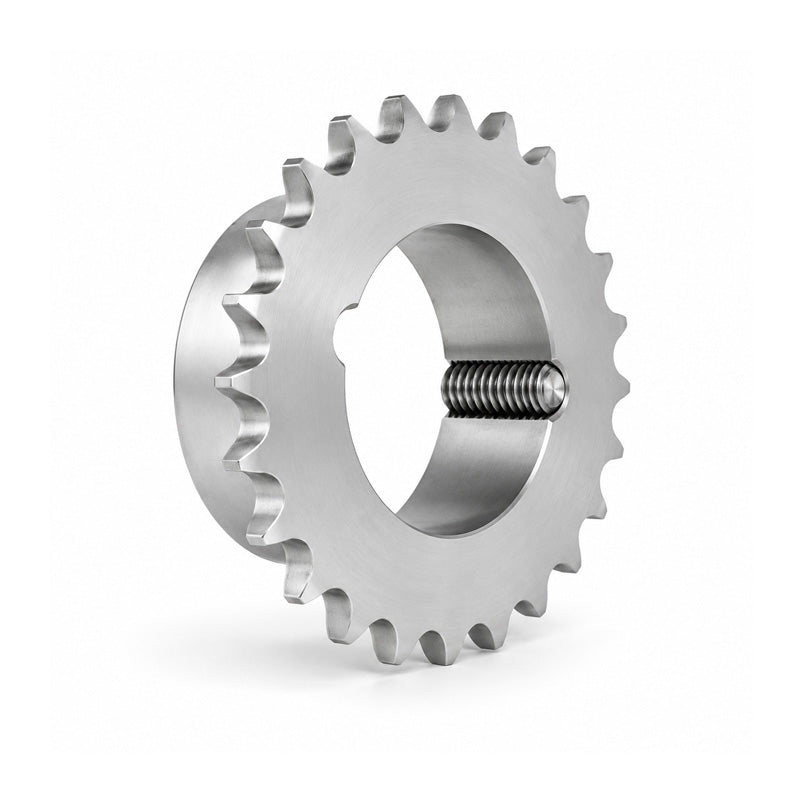

• Drive-Flex 15 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
1 1

SKU: TBS-S-16B-15-DF

Drive-Flex 15 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.

Drive-Flex 15 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
$58.23 ex VAT
$58.23 ex VAT
Sale Sold out

In stock

Price Break
10+ $51.82
19+ $48.91
29+ $48.33
39+ $47.75
49+ $47.17
74+ $46.58
99+ $43.67
199+ $43.09
249+ $42.51
499+ $41.93
999+ $40.76
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Brand / Quality:
Drive-Flex - High Quality
Number of Teeth:
15
Pitch:
25.4mm = 1 inch
Item Type:
BS European Standard
Technical
Tooth Radius r3 26mm
Chamfer c 2.5mm
Tooth Width b1 15.8mm
Tooth Width B1 16.2mm
Tooth Width B2 47.7mm
Tooth Width B3 79.6mm
Pitch 25.4mm
Width Between Inner 17.02mm
Roller Diameter 15.88mm
No. of Teeth 15
Outer Diameter de 133mm
Pitch Diameter dp 122.17mm
Hub Diameter dm 76mm
Length Through Bore A 38mm
Reference 81-15
Taper Bush <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1615+tapered+locking+bush>1615 Click Here</a>
