SKU: TBS-S-12B-38-DF

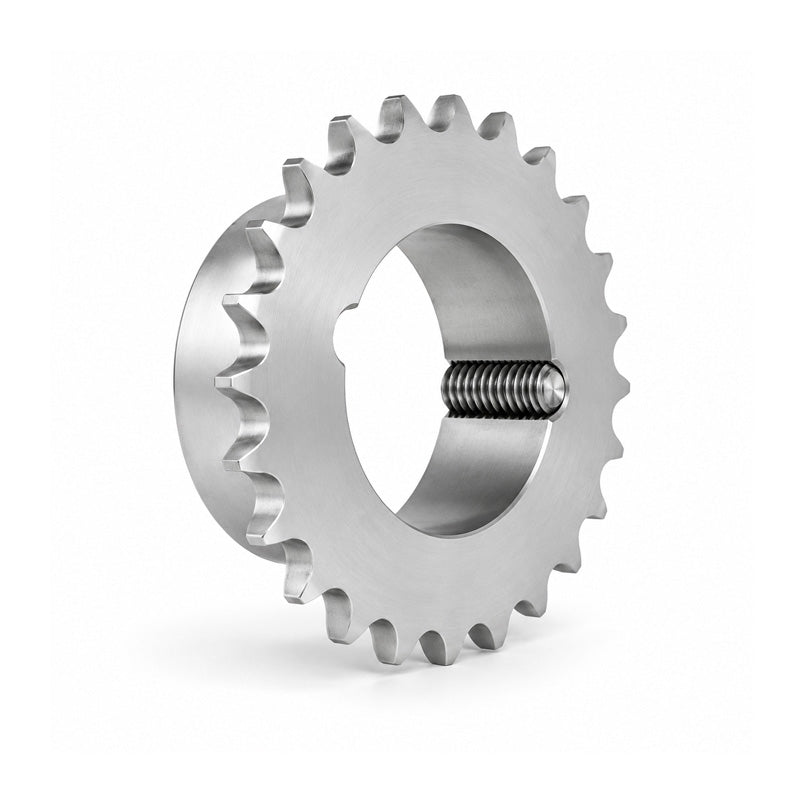

Drive-Flex 38 Tooth 12B Simplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
Drive-Flex 38 Tooth 12B Simplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
Regular price
$116.69
ex VAT
Regular price
Sale price
$116.69
ex VAT
In stock
Price Break
10+
$103.85
19+
$98.02
29+
$96.85
39+
$95.69
49+
$94.52
74+
$93.35
99+
$87.52
199+
$86.35
249+
$85.18
499+
$84.02
999+
$81.68
Couldn't load pickup availability
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
- Brand / Quality:
- Drive-Flex - High Quality
- Number of Teeth:
- 38
- Chain Pitch:
- 19.05mm = 0.75 (3/4) inch
- Item Type:
- BS European Standard
Technical
Technical
| No. of Teeth | 38 |
|---|---|
| Pitch Diameter dp | 230.68mm |
| Outer Diameter de | 239mm |
| Diameter Over Chain A | 247mm |
| Hub Diameter N | 108mm |
| Tooth Width B1 | 11.1mm |
| Bore Length L | 44.5mm |
| Taper Bush Series | 2517 |
| Weight | 3.549 kg |
