SKU: TBS-DS-12B-17

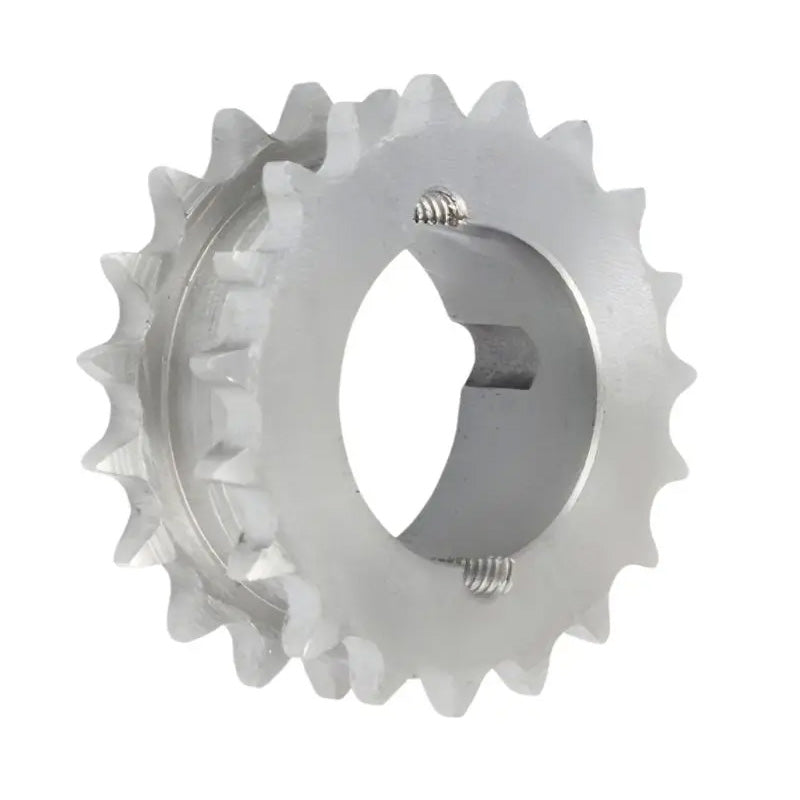

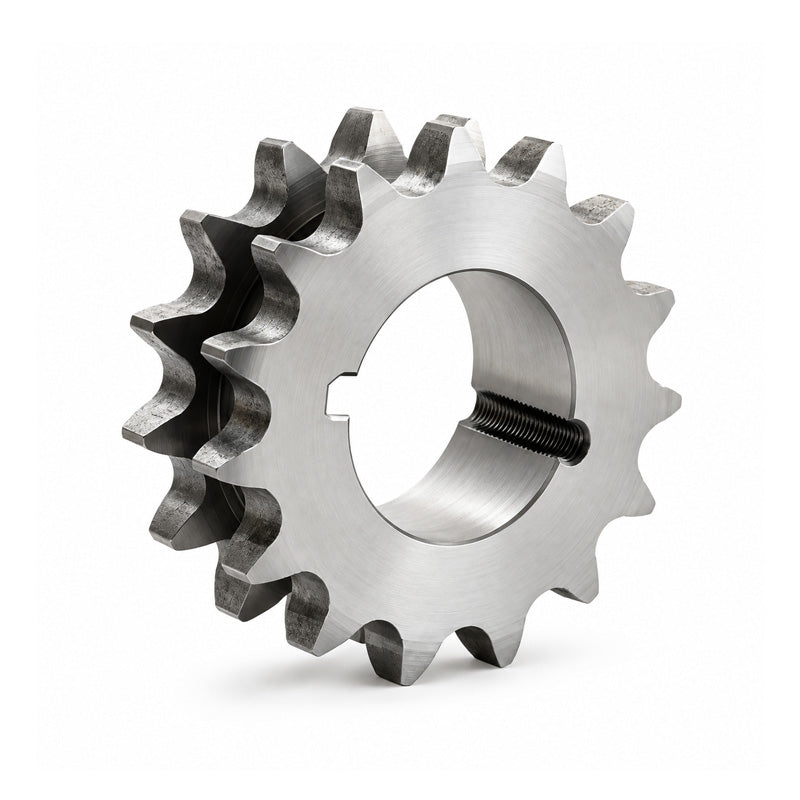

17 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
17 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
Regular price
$80.60
ex VAT
Regular price
Sale price
$80.60
ex VAT
Equivalent to: 671-032 DS12B1-17TB
In stock
Price Break
10+
$71.73
19+
$67.70
29+
$66.90
39+
$66.09
49+
$65.29
74+
$64.48
99+
$60.45
199+
$59.64
249+
$58.84
499+
$58.03
999+
$56.42
Couldn't load pickup availability
Description
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-032 DS12B1-17TB
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-032 DS12B1-17TB
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 17
- Chain Pitch:
- 19.05mm = 0.75 (3/4) inch
- Item Type:
- BS European Standard

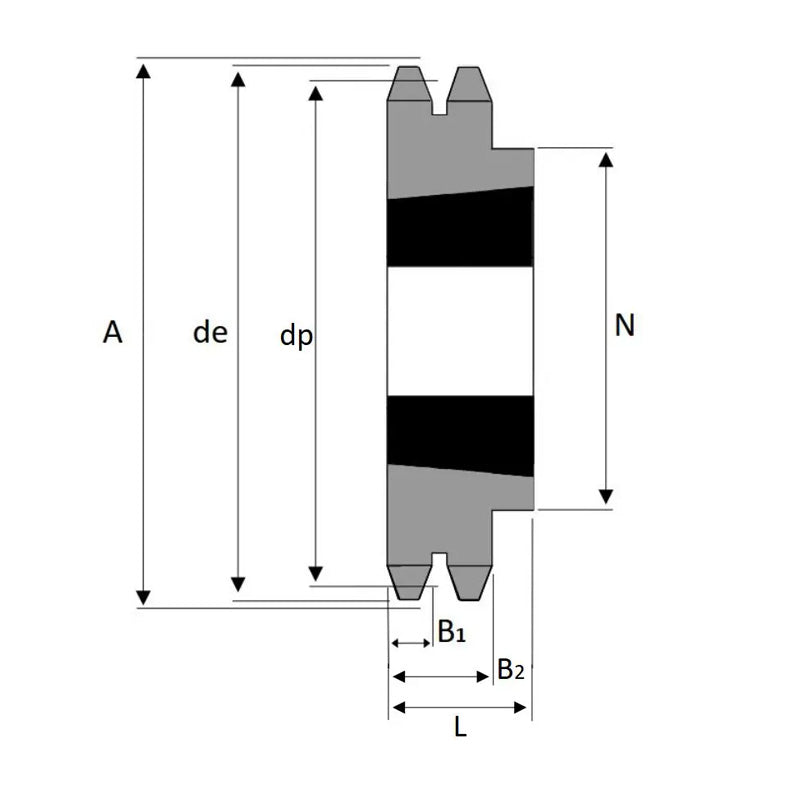

Technical
Technical
| No. of Teeth | 17 |
|---|---|
| Pitch Diameter dp | 103.67mm |
| Outer Diameter de | 111.5mm |
| Width B | 45mm |
| Hub Diameter N | 83mm |
| Chamfer C | 45mm |
| Tooth Radius r3 | 2mm |
| Tooth Width b1 | 19mm |
| Taper Bush Series | 1610 |
| Weight | 1.211 kg |
