SKU: TAW.5045.Z.EU

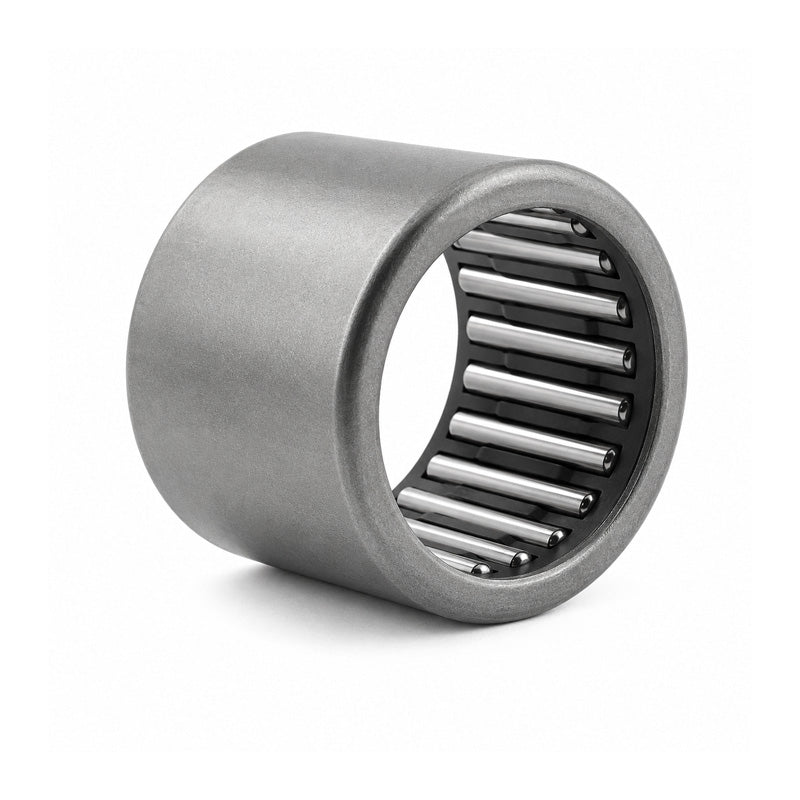

Premier Budget TAW5045Z Needle Roller Bearing Open End Type 50x62x45mm
Premier Budget TAW5045Z Needle Roller Bearing Open End Type 50x62x45mm
Regular price
$24.38
ex VAT
Regular price
Sale price
$24.38
ex VAT
Equivalent to: HMKW7051
In stock
Price Break
10+
$21.70
19+
$20.48
29+
$20.24
39+
$19.99
49+
$19.75
74+
$19.50
99+
$18.29
199+
$18.04
249+
$17.80
499+
$17.55
999+
$17.07
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMKW7051
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 45mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 62mm |
| C | 45mm |
| Dynamic load | 76500N |
| Static load | 158000N |
| Inner race | IRT5045 |
| Weight | 180g |
