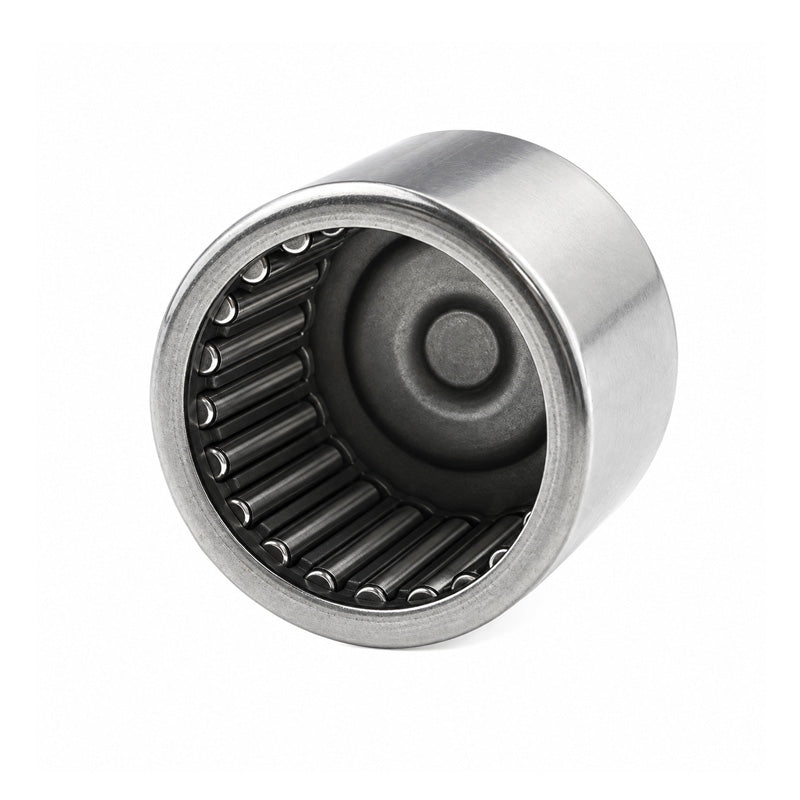

• IKO TAM1720 Needle Roller Bearing Closed End Type 17x24x20mm
1 1

SKU: TAM.1720

IKO TAM1720 Needle Roller Bearing Closed End Type 17x24x20mm

IKO TAM1720 Needle Roller Bearing Closed End Type 17x24x20mm
$16.13 ex VAT
$16.13 ex VAT
Sale Sold out

In stock

Price Break
10+ $14.36
19+ $13.55
29+ $13.39
39+ $13.23
49+ $13.07
74+ $12.90
99+ $12.10
199+ $11.94
249+ $11.77
499+ $11.61
999+ $11.29
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

TAM Series Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.

Brand / Quality:
IKO - High Quality
Inside Diameter:
17mm
Outside Diameter:
24mm
Width:
20mm
Technical
Fw 17mm
D 24mm
C 20mm
Dynamic load 13900 N
Static load 20400 N
Inner ring IRT 1220-2
Weight 25 g
