SKU: TA.6030.Z

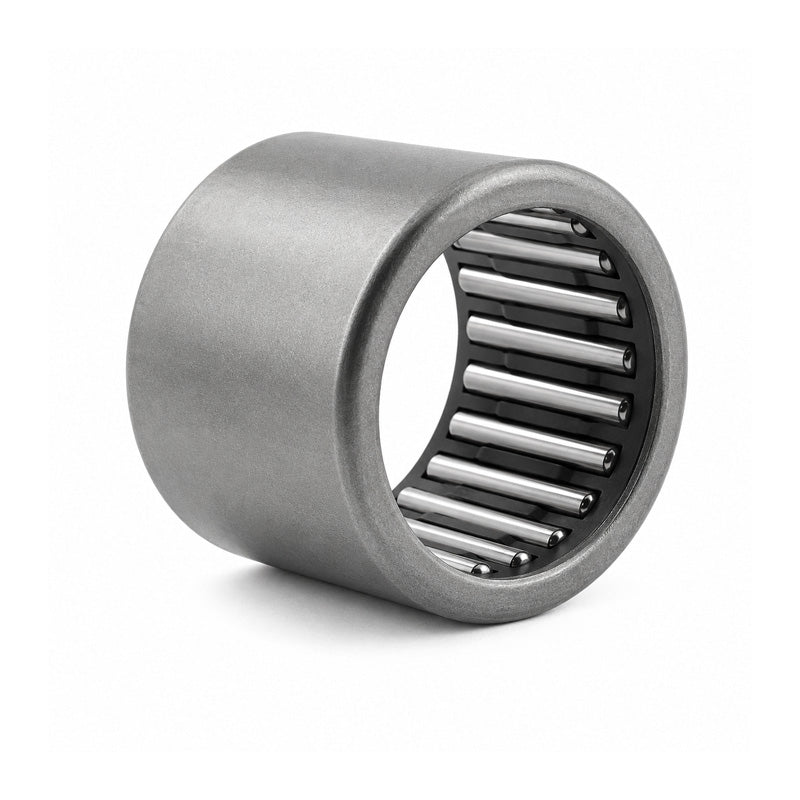

IKO TA6030Z Needle Roller Bearing Open End Type 60x72x30mm
IKO TA6030Z Needle Roller Bearing Open End Type 60x72x30mm
Regular price
$27.51
ex VAT
Regular price
Sale price
$27.51
ex VAT
Equivalent to: HMK6030
In stock
Price Break
10+
$24.48
19+
$23.11
29+
$22.83
39+
$22.56
49+
$22.28
74+
$22.01
99+
$20.63
199+
$20.36
249+
$20.08
499+
$19.81
999+
$19.26
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK6030
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 30mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 30mm |
| Dynamic load | 66300 N |
| Static load | 139000 N |
| Inner race | IRT5030 |
| Weight | 230 g |
