SKU: TA.6025.Z

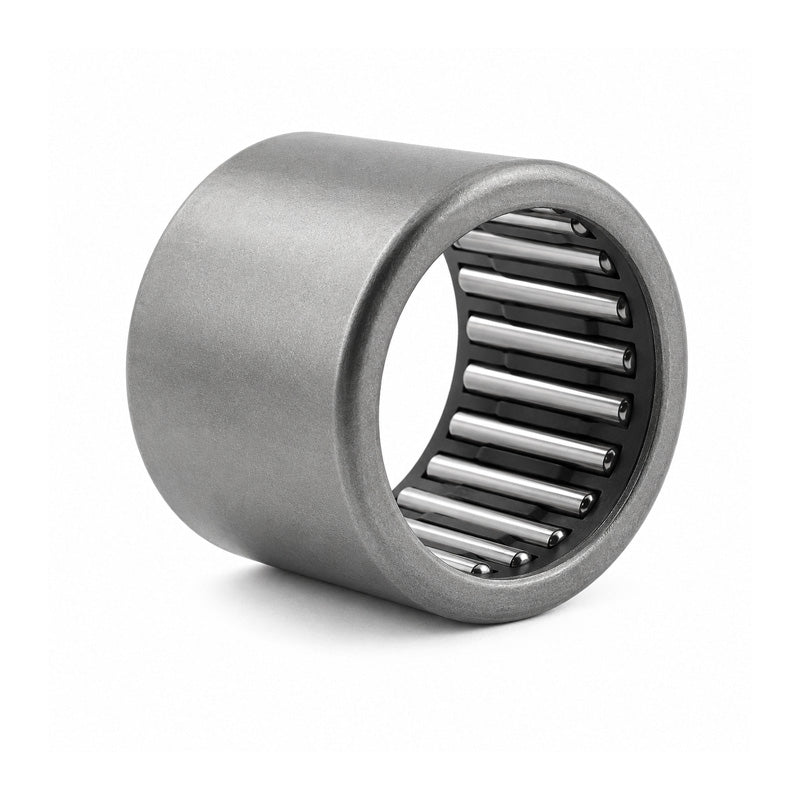

IKO TA6025Z Needle Roller Bearing Open End Type 60x72x25mm
IKO TA6025Z Needle Roller Bearing Open End Type 60x72x25mm
Regular price
$14.63
ex VAT
Regular price
Sale price
$14.63
ex VAT
Equivalent to: HMK6025
In stock
Price Break
10+
$13.02
19+
$12.29
29+
$12.14
39+
$12.00
49+
$11.85
74+
$11.70
99+
$10.97
199+
$10.83
249+
$10.68
499+
$10.53
999+
$10.24
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK6025
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 25mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 25mm |
| Dynamic load | 54700 N |
| Static load | 108000 N |
| Inner race | IRT5025 |
| Weight | 175 g |
