SKU: TA.5025.Z-EU

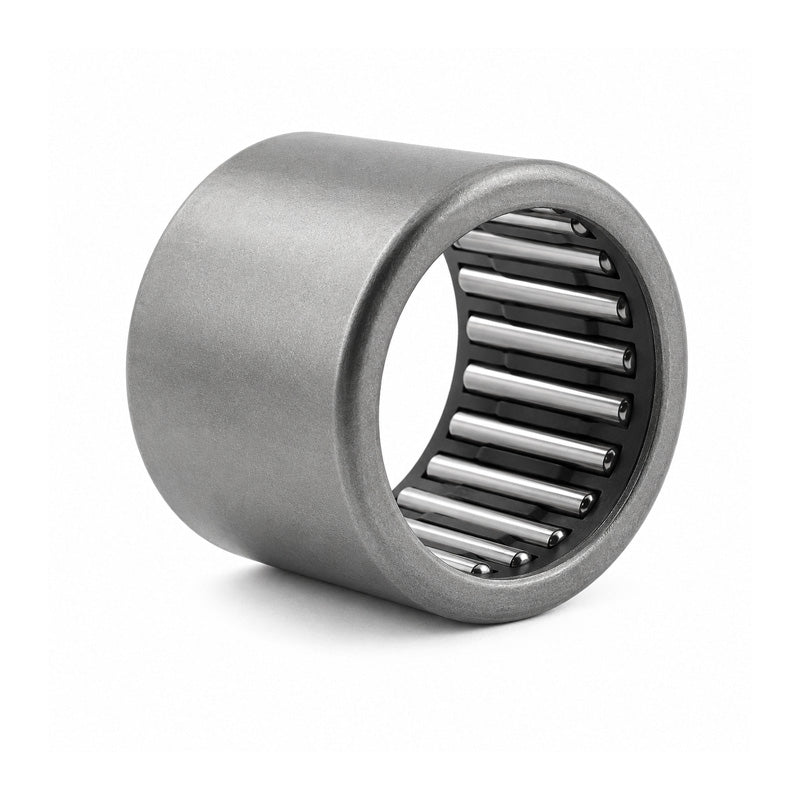

Premier Budget TA5025Z Needle Roller Bearing Open End Type 50x62x25mm
Premier Budget TA5025Z Needle Roller Bearing Open End Type 50x62x25mm
Regular price
$19.69
ex VAT
Regular price
Sale price
$19.69
ex VAT
Equivalent to: HMK5025
In stock
Price Break
10+
$17.52
19+
$16.54
29+
$16.34
39+
$16.15
49+
$15.95
74+
$15.75
99+
$14.77
199+
$14.57
249+
$14.37
499+
$14.18
999+
$13.78
Couldn't load pickup availability
Share this product
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK5025
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 25mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 62mm |
| C | 25mm |
| Dynamic load | 49100N |
| Static load | 89000N |
| Inner race | IRT4525 |
| Weight | 107g |
