SKU: TA.4015.Z-EU

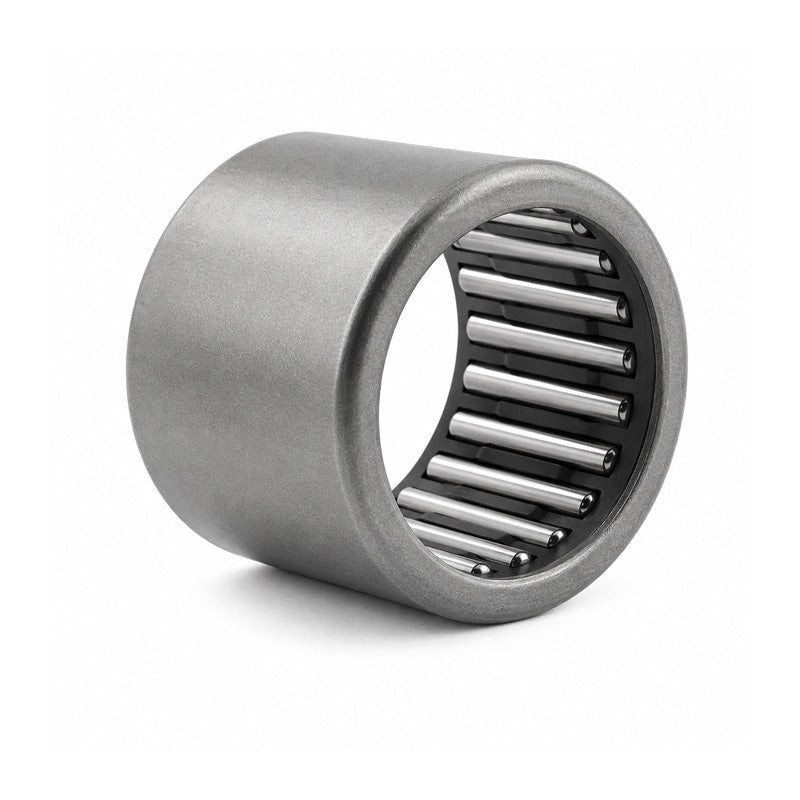

Premier Budget TA4015Z Needle Roller Bearing Open End Type 40x50x15mm
Premier Budget TA4015Z Needle Roller Bearing Open End Type 40x50x15mm
Regular price
$18.01
ex VAT
Regular price
Sale price
$18.01
ex VAT
Equivalent to: HMK4015
In stock
Price Break
10+
$16.03
19+
$15.13
29+
$14.95
39+
$14.77
49+
$14.59
74+
$14.41
99+
$13.51
199+
$13.33
249+
$13.15
499+
$12.97
999+
$12.61
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK4015
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 50mm
- Width:
- 15mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 50mm |
| C | 15mm |
| Dynamic load | 19500N |
| Static load | 29400N |
| Inner race | IRT3515 |
| Weight | 149g |
