SKU: TA.3815.Z-EU

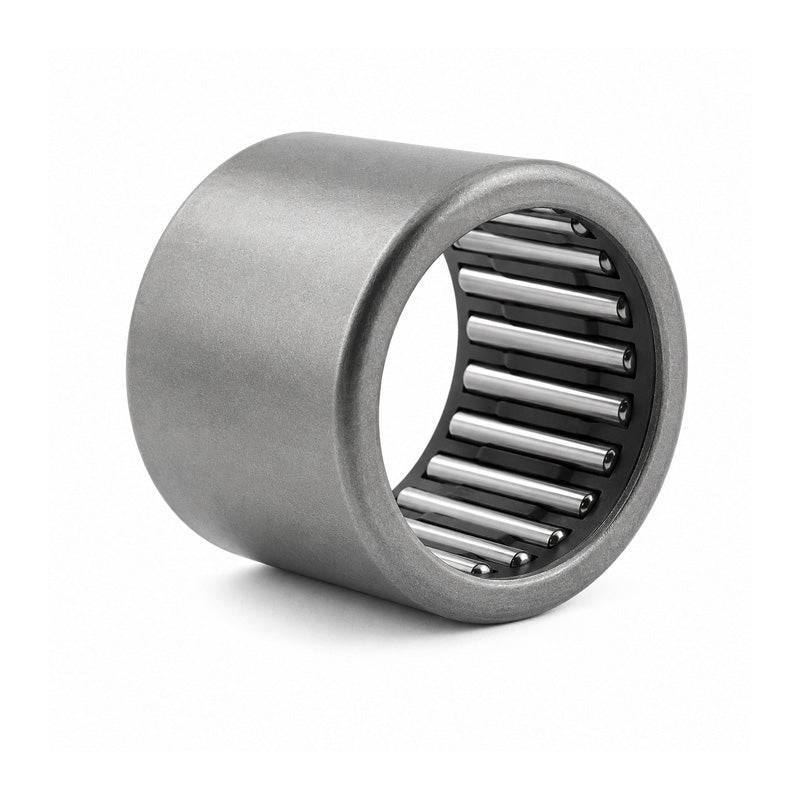

Premier Budget TA3815Z Needle Roller Bearing Open End Type 38x48x15mm
Premier Budget TA3815Z Needle Roller Bearing Open End Type 38x48x15mm
Regular price
$17.45
ex VAT
Regular price
Sale price
$17.45
ex VAT
Equivalent to: HMK3815
In stock
Price Break
10+
$15.53
19+
$14.66
29+
$14.48
39+
$14.31
49+
$14.13
74+
$13.96
99+
$13.09
199+
$12.91
249+
$12.74
499+
$12.56
999+
$12.22
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK3815
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38mm
- Outside Diameter:
- 48mm
- Width:
- 15mm
Technical
Technical
| Fw | 38mm |
|---|---|
| D | 48mm |
| C | 15mm |
| Dynamic load | 19000N |
| Static load | 28000N |
| Inner race | IRT3215-1 |
| Weight | 51g |
