SKU: TA.3515.Z

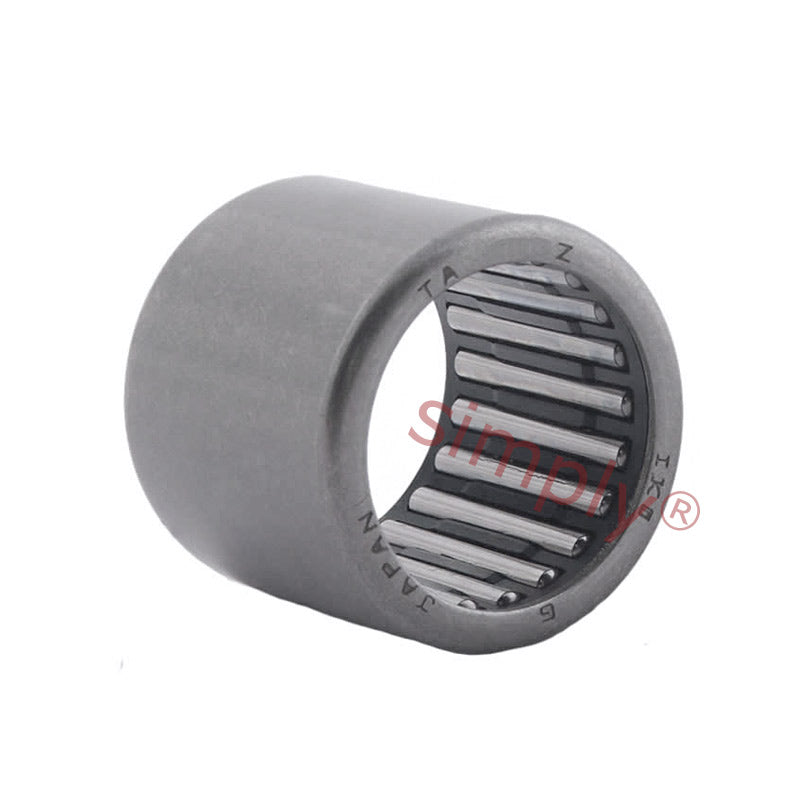

IKO TA3515Z Needle Roller Bearing Open End Type 35x45x15mm
IKO TA3515Z Needle Roller Bearing Open End Type 35x45x15mm
Regular price
$25.02
ex VAT
Regular price
Sale price
$25.02
ex VAT
Equivalent to: HMK3515
In stock
Price Break
10+
$22.27
19+
$21.02
29+
$20.77
39+
$20.52
49+
$20.27
74+
$20.02
99+
$18.77
199+
$18.51
249+
$18.26
499+
$18.01
999+
$17.51
Couldn't load pickup availability
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK3515
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 45mm
- Width:
- 15mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 45mm |
| C | 15mm |
| Dynamic load | 18500 N |
| Static load | 26500 N |
| Inner race | IRT3015 |
| Weight | 48 g |
