SKU: TA.1825.Z-EU

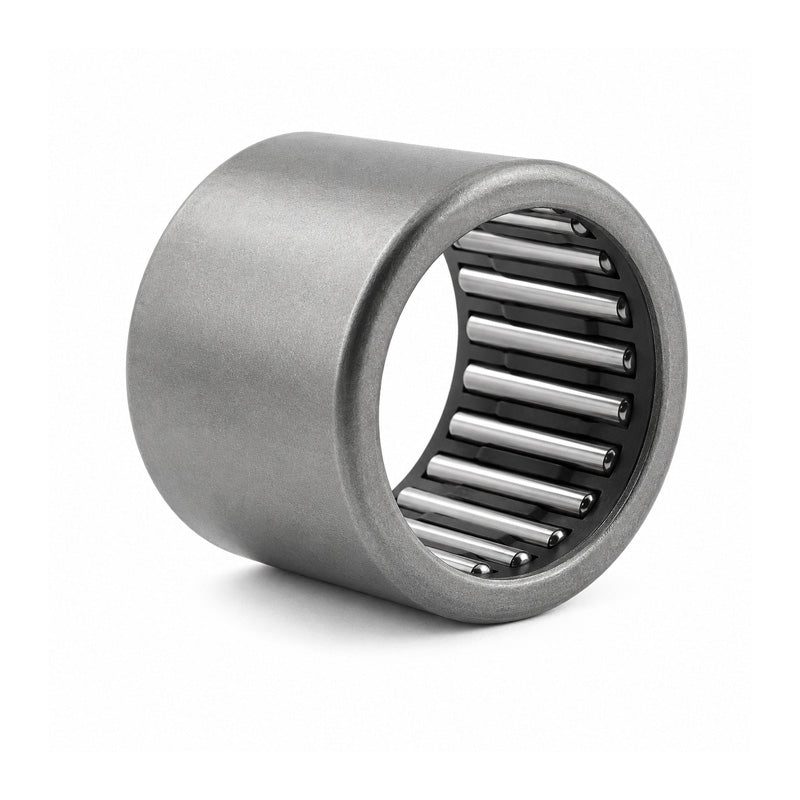

Premier Budget TA1825Z Needle Roller Bearing Open End Type 18x25x25mm
Premier Budget TA1825Z Needle Roller Bearing Open End Type 18x25x25mm
Regular price
$15.53
ex VAT
Regular price
Sale price
$15.53
ex VAT
Equivalent to: HMK1825
In stock
Price Break
10+
$13.82
19+
$13.05
29+
$12.89
39+
$12.73
49+
$12.58
74+
$12.42
99+
$11.65
199+
$11.49
249+
$11.34
499+
$11.18
999+
$10.87
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1825
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 25mm
- Width:
- 25mm
Technical
Technical
| Fw | 18mm |
|---|---|
| D | 25mm |
| C | 25mm |
| Dynamic load | 18600N |
| Static load | 30000N |
| Inner race | IRT1525 |
| Weight | 30.5g |
