SKU: TA.1515.Z-EU

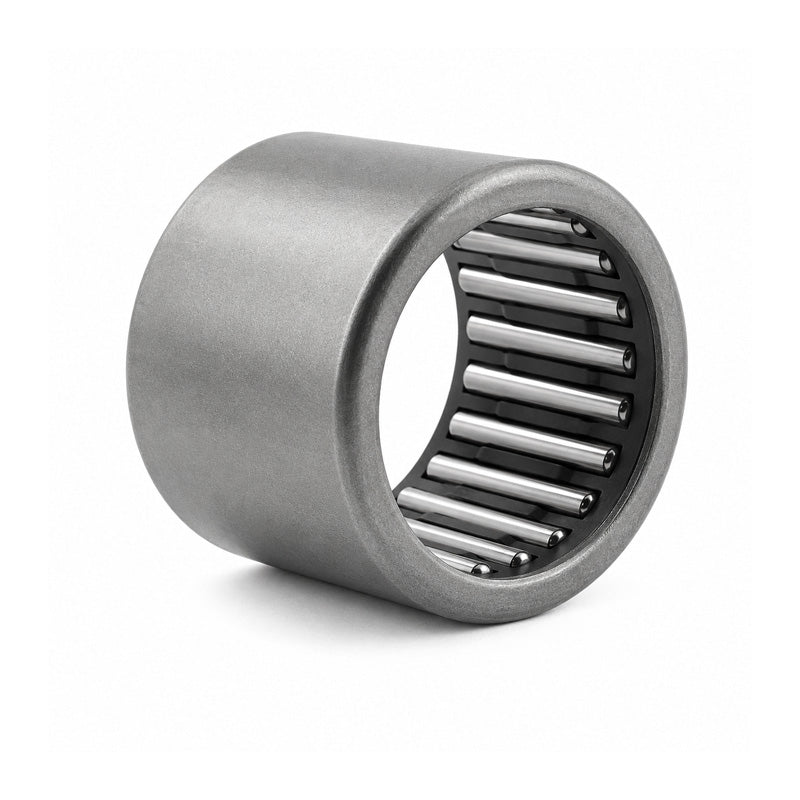

Premier Budget TA1515Z Needle Roller Bearing Open End Type 15x22x15mm
Premier Budget TA1515Z Needle Roller Bearing Open End Type 15x22x15mm
Regular price
$14.51
ex VAT
Regular price
Sale price
$14.51
ex VAT
Equivalent to: HMK1515
In stock
Price Break
10+
$12.91
19+
$12.19
29+
$12.04
39+
$11.90
49+
$11.75
74+
$11.61
99+
$10.88
199+
$10.74
249+
$10.59
499+
$10.45
999+
$10.16
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1515
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 22mm
- Width:
- 15mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 22mm |
| C | 15mm |
| Dynamic load | 8830N |
| Static load | 11000N |
| Inner race | IRT1015-1 |
| Weight | 15.9g |
