SKU: TA.1512.Z-EU

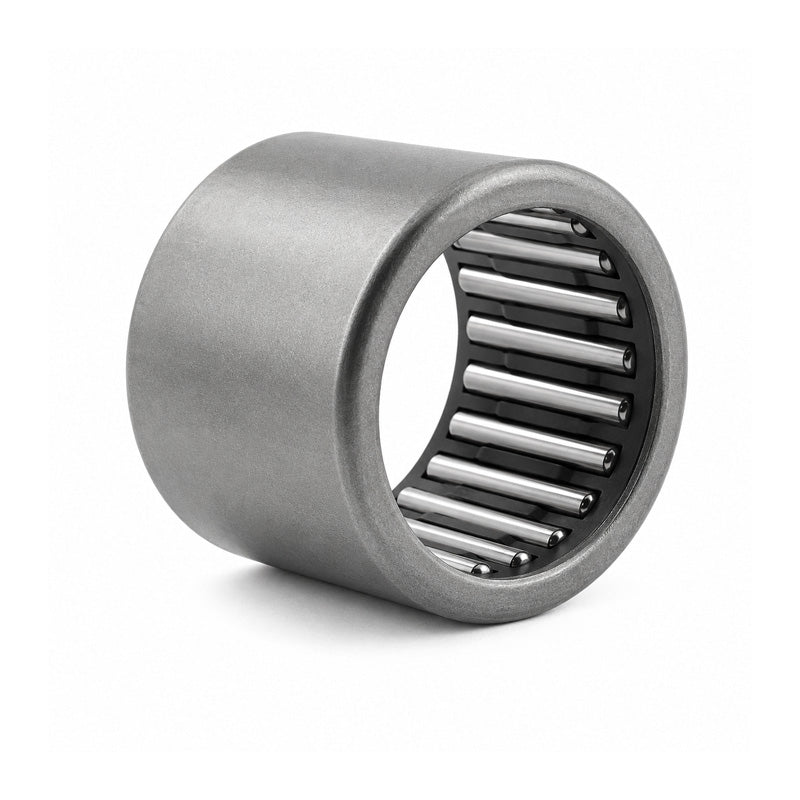

Premier Budget TA1512Z Needle Roller Bearing Open End Type 15x22x12mm
Premier Budget TA1512Z Needle Roller Bearing Open End Type 15x22x12mm
Regular price
$14.31
ex VAT
Regular price
Sale price
$14.31
ex VAT
Equivalent to: HMK1512
In stock
Price Break
10+
$12.74
19+
$12.02
29+
$11.88
39+
$11.73
49+
$11.59
74+
$11.45
99+
$10.73
199+
$10.59
249+
$10.45
499+
$10.30
999+
$10.02
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1512
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 22mm
- Width:
- 12mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 22mm |
| C | 12mm |
| Dynamic load | 7120N |
| Static load | 8310N |
| Inner race | IRT1012-1 |
| Weight | 12.9g |
