SKU: SYF20TF-SKF

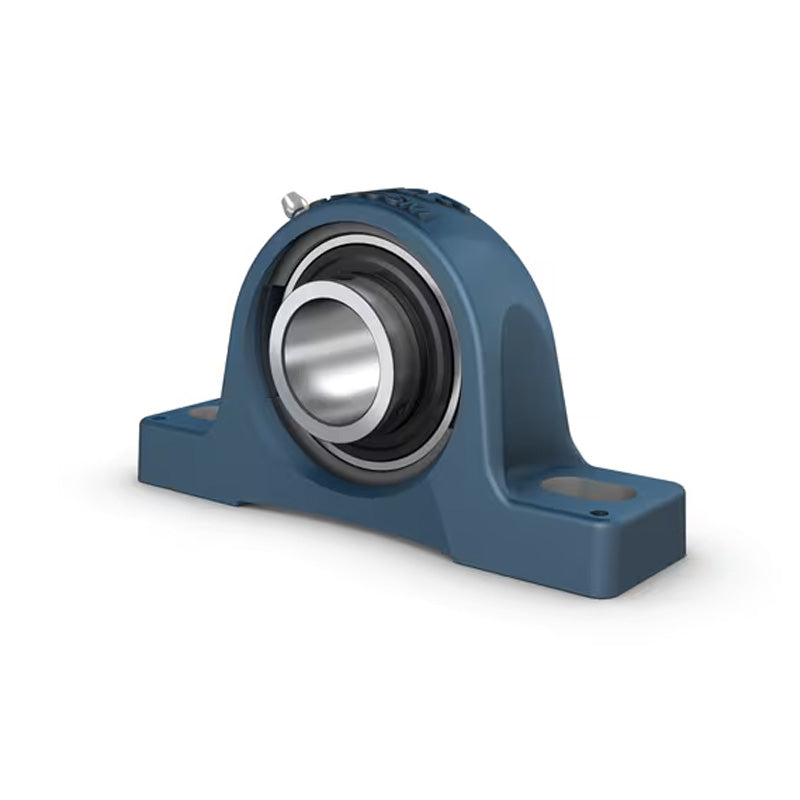

SKF SYF20TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 20mm
SKF SYF20TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 20mm
Regular price
$54.27
ex VAT
Regular price
Sale price
$54.27
ex VAT
In stock
Price Break
10+
$25.63
20+
$24.19
30+
$23.90
40+
$23.62
50+
$23.33
75+
$23.04
100+
$21.60
200+
$21.31
250+
$21.02
500+
$20.74
1000+
$20.16
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- SYF
- Bolt Hole Centres:
- 50.8mm

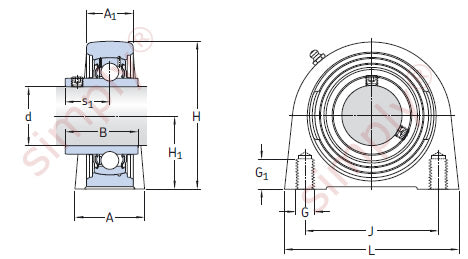

Technical
Technical
| d | 20mm |
|---|---|
| A | 32mm |
| A1 | 21mm |
| B | 31mm |
| H | 65mm |
| H1 | 33.3mm |
| J | 50.8mm |
| L | 65mm |
| G | M8 |
| G1 | 14mm |
| s1 | 18.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| Weight | 0.43 kg |
| Housing | SYF504 |
| Insert | YAR204-2F |
