SKU: SY55TF/VA201-SKF

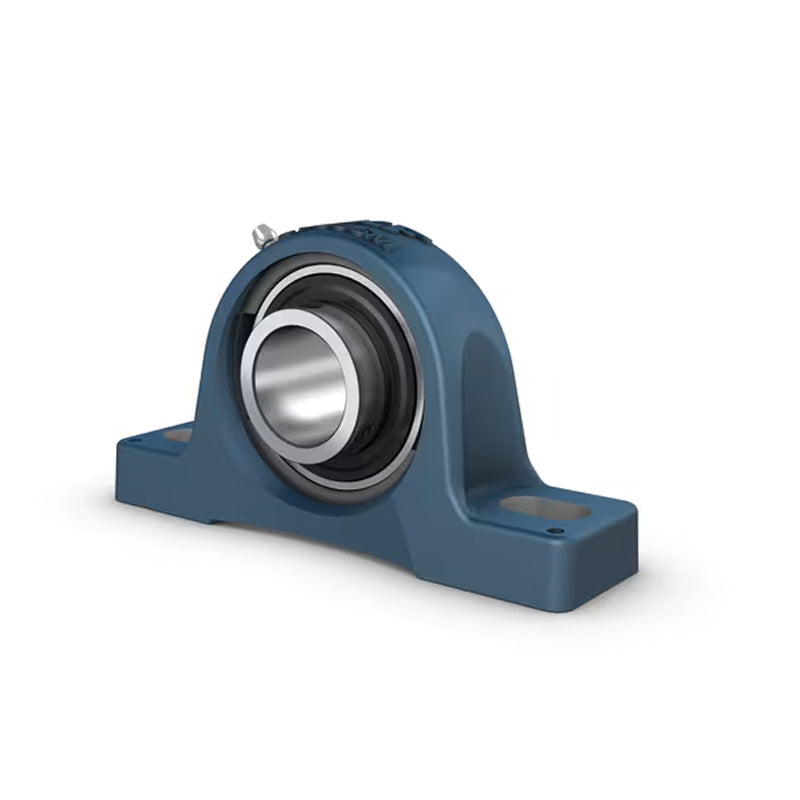

SKF SY55TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 55mm
SKF SY55TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 55mm
Regular price
$630.81
ex VAT
Regular price
Sale price
$630.81
ex VAT
In stock
Price Break
10+
$561.42
19+
$529.88
29+
$523.57
39+
$517.26
49+
$510.96
74+
$504.65
99+
$473.11
199+
$466.80
249+
$460.49
499+
$454.18
999+
$441.57
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 55mm |
|---|---|
| A | 60mm |
| B | 55.6mm |
| H | 127mm |
| H1 | 63.5mm |
| H2 | 23.8mm |
| J | 171.5mm |
| L | 219mm |
| N | 27.5mm |
| N1 | 18mm |
| G | 16mm |
| S1 | 33.4mm |
| Dynamic load C | 43.6 kN |
| Static load Co | 29 kN |
| Weight | 3.59 kg |
