SKU: SY2.TF/VA228-SKF

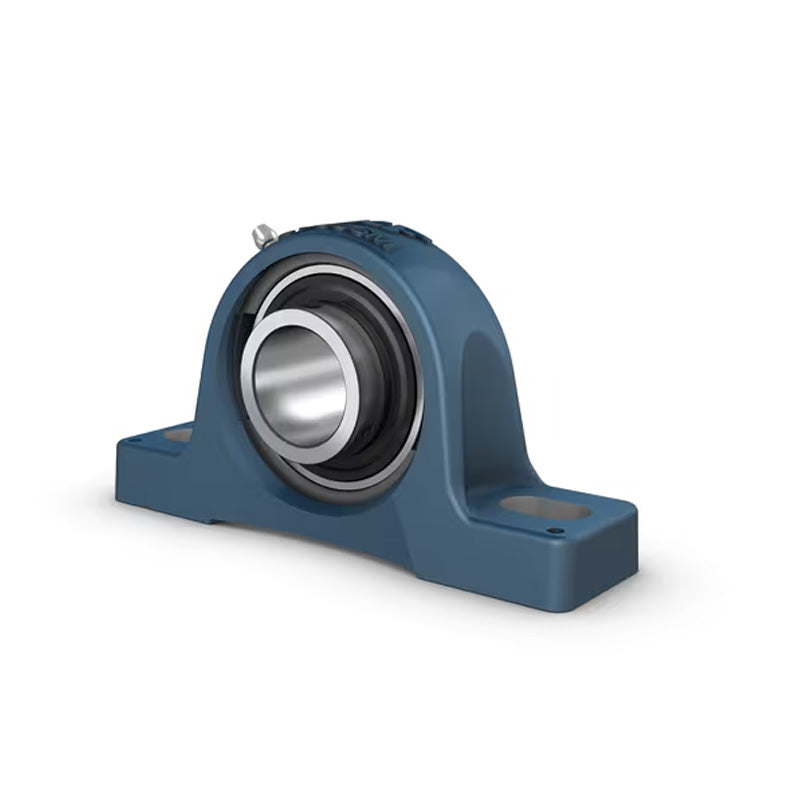

SKF SY2TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 2 inch
SKF SY2TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 2 inch
Regular price
$628.24
ex VAT
Regular price
Sale price
$628.24
ex VAT
In stock
Price Break
10+
$559.13
19+
$527.72
29+
$521.44
39+
$515.16
49+
$508.87
74+
$502.59
99+
$471.18
199+
$464.90
249+
$458.62
499+
$452.33
999+
$439.77
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2 inch |
|---|---|
| A | 60mm |
| B | 55.6mm |
| H | 127mm |
| H1 | 63.5mm |
| H2 | 23.8mm |
| J | 171.5mm |
| L | 219mm |
| N | 27.5mm |
| N1 | 18mm |
| G | 16mm |
| S1 | 33.4mm |
| Dynamic load C | 43.6 kN |
| Static load Co | 29 kN |
| Weight | 3.75 kg |
