SKU: SW9-M2400

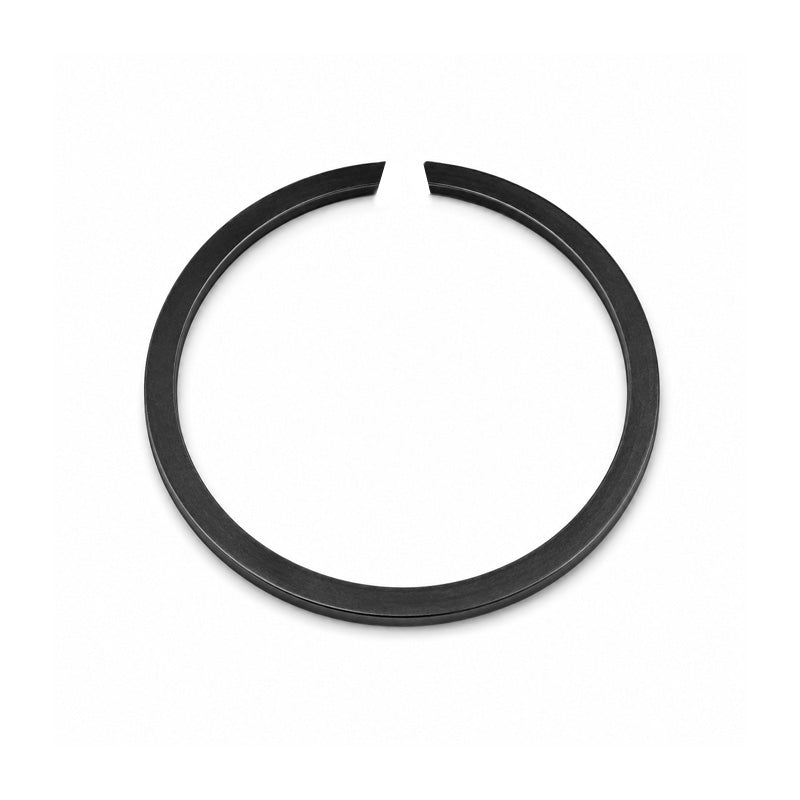

SW9 Snap Ring to Suit 9mm Shaft
SW9 Snap Ring to Suit 9mm Shaft
Regular price
$1.59
ex VAT
Regular price
Sale price
$1.59
ex VAT
Equivalent to: DIN5417 DIN 5417 CFS9 CFS-9 2400-9 SW9 SW-9 M2400-9
In stock
Price Break
10+
$0.80
20+
$0.54
50+
$0.33
100+
$0.24
500+
$0.13
1000+
$0.10
Couldn't load pickup availability
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
Equivalent: DIN5417 DIN 5417 CFS9 CFS-9 2400-9 SW9 SW-9 M2400-9
- Brand / Quality:
- Simply Snap Rings - High Quality
- Inside Diameter:
- 8.4mm
- Shaft Size:
- 9mm
Technical
Technical
| d1 | 9mm |
|---|---|
| s | 1mm (Tolerance -0.1) |
| b | 1.3mm (Tolerance -0.1) |
| d3 max. | 8.4mm |
| d2 | 8.6mm (Tolerance - 0.09) |
| m min. | 1.1mm |
| FN | 0.92 kN |
| FR | 10.6 kN |
| n det x1000 | 80 rpm |
