SKU: SUCFL.PL.206-20

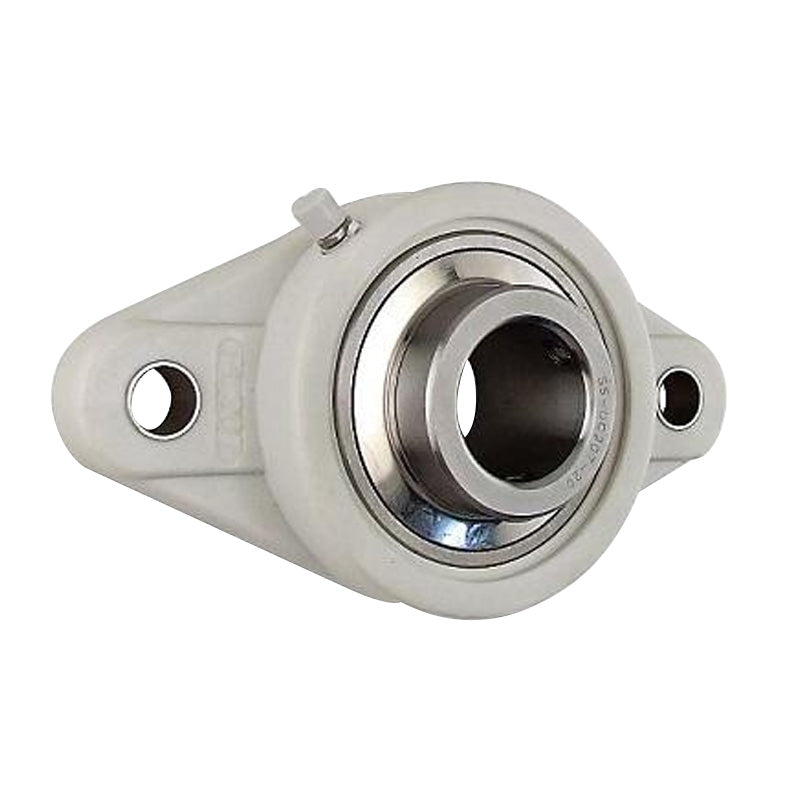

SUCFLPL206-20 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 1-1/4 inch Bore Stainless Insert
SUCFLPL206-20 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 1-1/4 inch Bore Stainless Insert
Regular price
$28.36
ex VAT
Regular price
Sale price
$28.36
ex VAT
In stock
Price Break
3+
$13.39
4+
$12.64
9+
$12.49
19+
$12.34
49+
$12.19
99+
$12.04
499+
$11.29
999+
$11.14
1999+
$10.99
2999+
$10.84
4999+
$10.54
Description
Description
|
SUCFLP or SFT Series 2 Bolt Oval Thermo-Plastic Housings: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. This housing unit may be supplied in either green or white. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCFL
- Bolt Hole Centres:
- 117mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 148mm |
| e | 117mm |
| i | 18mm |
| g | 13mm |
| L | 31mm |
| S | 16mm |
| b | 80mm |
| Z | 40.2mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt | 14mm |
| Weight | 0.94 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Temperature Range | -35 to 102 deg C |
