SKU: SUCFL.PL.205-16
SUCFLPL205-16 Metric Thermo Plastic Two Bolt Oval Flange Housing with 25mm Bore Stainless Insert
SUCFLPL205-16 Metric Thermo Plastic Two Bolt Oval Flange Housing with 25mm Bore Stainless Insert
Regular price
$42.28
ex VAT
Regular price
Sale price
$42.28
ex VAT
In stock
Price Break
10+
$37.63
19+
$35.52
29+
$35.09
39+
$34.67
49+
$34.25
74+
$33.82
99+
$31.71
199+
$31.29
249+
$30.86
499+
$30.44
999+
$29.60
Couldn't load pickup availability
Description
Description

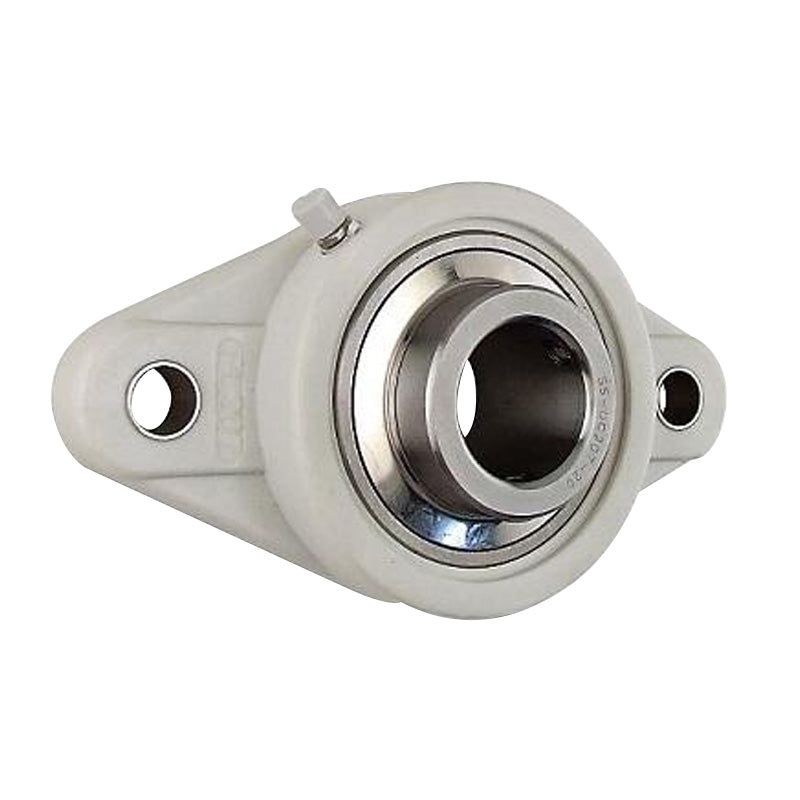

SUCFLPL Thermo Plastic Two Bolt Oval Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCFL
- Bolt Hole Centres:
- 99mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 131mm |
| e | 99mm |
| b | 70mm |
| g | 14mm |
| L | 29.5mm |
| s | 11mm |
| i | 17mm |
| Bi | 34mm |
| n | 14.5mm |
| Bolt | 10mm |
| Weight | 0.1kg |
| Temperature Range | -35 to 102 deg C |
