SKU: SUCF.PL.209-26

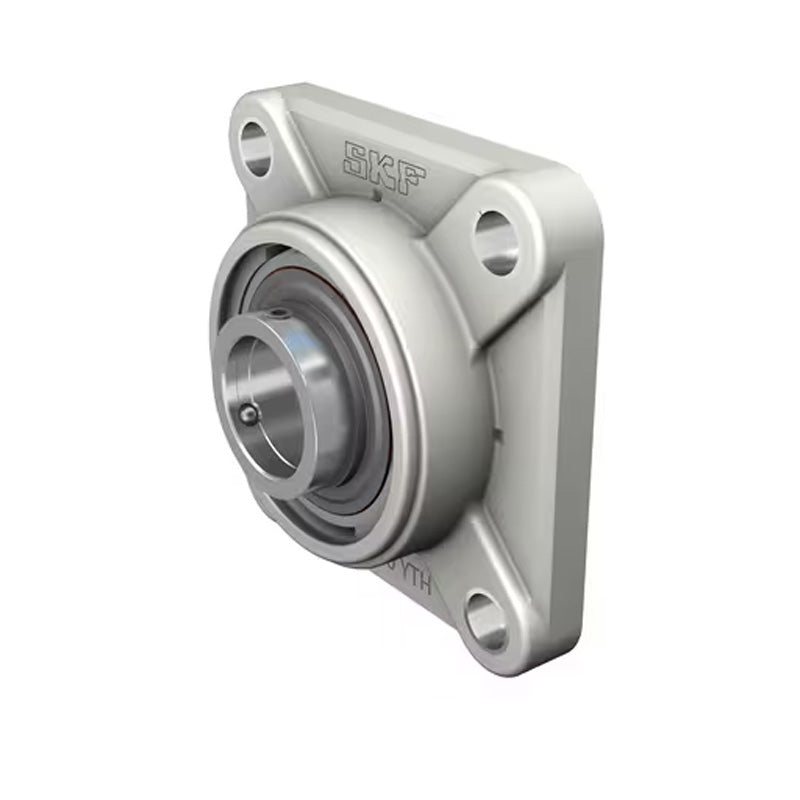

SUCFPL209-26 Imperial Four Bolt Square Thermo Plastic Flange Housing with 1-5/8 inch Bore Stainless Insert
SUCFPL209-26 Imperial Four Bolt Square Thermo Plastic Flange Housing with 1-5/8 inch Bore Stainless Insert
Regular price
$85.67
ex VAT
Regular price
Sale price
$85.67
ex VAT
In stock
Price Break
3+
$40.46
4+
$38.19
9+
$37.73
19+
$37.28
49+
$36.82
99+
$36.37
499+
$34.10
999+
$33.64
1999+
$33.19
2999+
$32.73
4999+
$31.82
Description
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCF
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| a | 137mm |
| e | 105mm |
| i | 22mm |
| g | 18mm |
| L | 38mm |
| S | 16mm |
| Z | 52.2mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt | 14mm |
| Weight | 2.3 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Temperature Range | -35 to 102 deg C |
