SKU: SUCF.PL.207-20

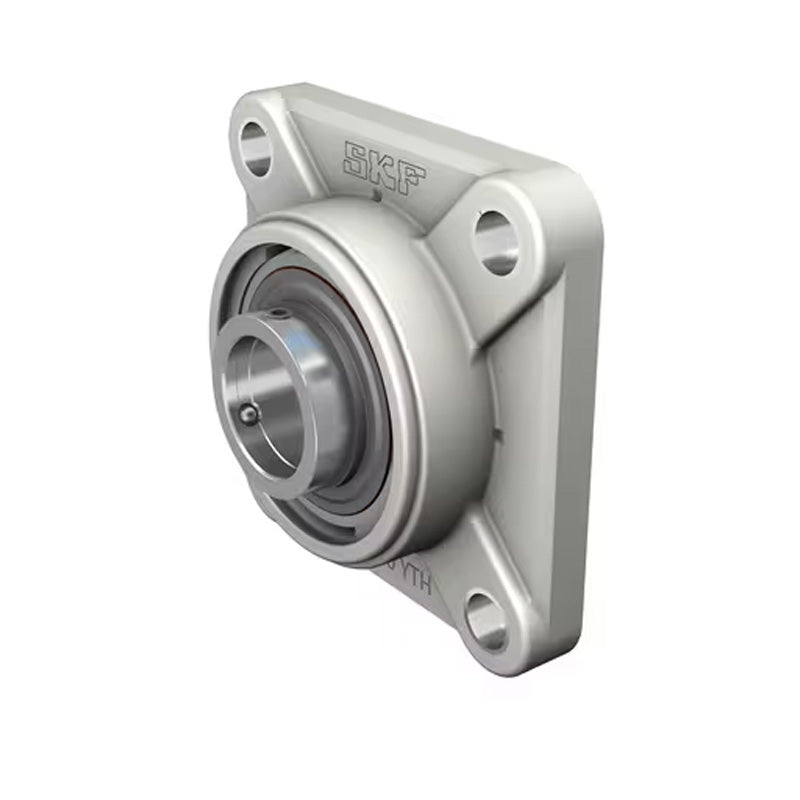

SUCFPL207-20 Imperial Four Bolt Square Thermo Plastic Flange Housing with 1-1/4 inch Bore Stainless Insert
SUCFPL207-20 Imperial Four Bolt Square Thermo Plastic Flange Housing with 1-1/4 inch Bore Stainless Insert
Regular price
$44.53
ex VAT
Regular price
Sale price
$44.53
ex VAT
In stock
Price Break
3+
$21.03
4+
$19.85
9+
$19.61
19+
$19.38
49+
$19.14
99+
$18.90
499+
$17.72
999+
$17.49
1999+
$17.25
2999+
$17.01
4999+
$16.54
Description
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCF
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 117mm |
| e | 92mm |
| i | 19mm |
| g | 16mm |
| L | 34mm |
| S | 14mm |
| Z | 44.4mm |
| Bi | 42.9mm |
| n | 17.5mm |
| Bolt | 12mm |
| Weight | 1.5 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Temperature Range | -35 to 102 deg C |
